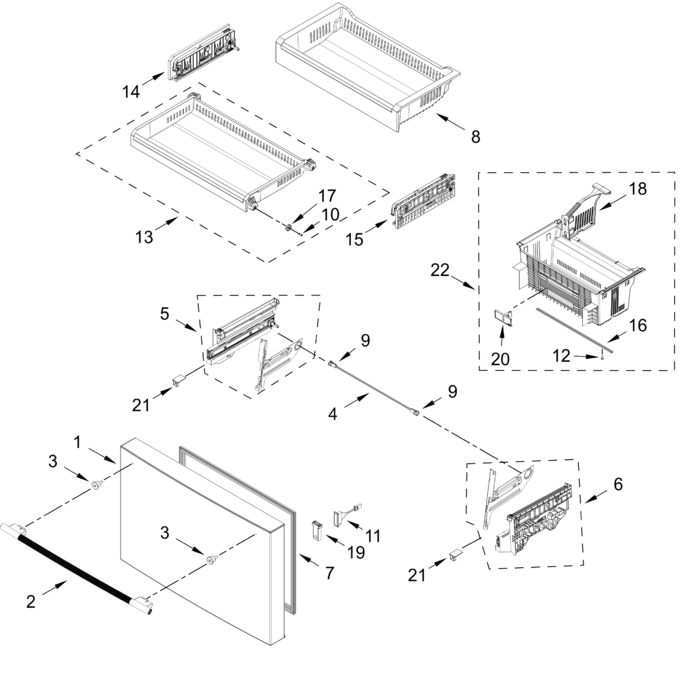

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11797008		Freezer Door Assembly (stainless, Includes Door Gasket)		Appelez-nous	-
2	W11791220		Door Handle (stainless)   (Replaces: W11682890)			Immediately	$ 243.95
3	W11449276		Screw   (Replaces: W11328753)			Immediately	$ 16.12
4	W11787217		Shaft Rack Assembly (bottom)   (Replaces: W11611561)		Appelez-nous	-
5	W11830077		Adapter Assembly (left Hand)   (Replaces: W11750020)				$ 452.34
6	W11830077		Adapter Assembly (right Hand)   (Replaces: W11750021)				$ 452.34
7	W11803538		Freezer Door Gasket (grey)   (Replaces: W11586644)		Appelez-nous	-
8	W11842379		Top Basket Assembly   (Replaces: W11534715)		Appelez-nous	-
9	WPW10277361		Gear Collar   (Replaces: W10277361)				$ 10.88
10	W10839805		Roller Axle		Appelez-nous	-
11	W11793915		Reed Switch   (Replaces: W11553901)				$ 56.90
12	W11816126		Screw   (Replaces: W11113841)		Appelez-nous	-
13	W11842377		Middle Basket Assembly   (Replaces: W11534710)		Appelez-nous	-
14	W11842406		Adapter Assembly (fc, Left Hand)   (Replaces: W11578712)		Appelez-nous	-
15	W11842407		Adapter Assembly (fc, Right Hand)   (Replaces: W11579070)		Appelez-nous	-
16	W11798520		Pan Support   (Replaces: W11604038)		Appelez-nous	-
17	W11807405		Pan Roller   (Replaces: W10838061)		Appelez-nous	-
18	W11807392		Bottom Basket Divider   (Replaces: W11727686)		Appelez-nous	-
19	W11791009		Reed Switch Holder   (Replaces: W11658593)		Appelez-nous	-
20	W11787215		Slider Basket   (Replaces: W11632631)				$ 23.18
21	W11790836		Clip Adapter   (Replaces: W11614114)				$ 19.31
22	W11790975		Bottom Basket Assembly   (Replaces: W11534705)		Appelez-nous	-
