SELECT A DIAGRAM

01 - Cabinet Back


02 - Crisper Assy & Freezer Feature Assy

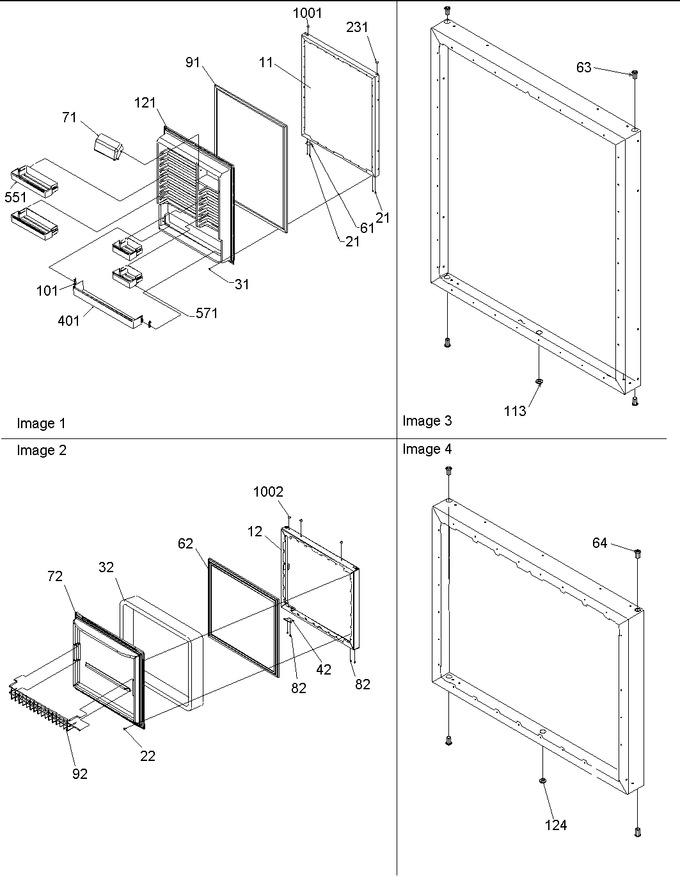

03 - Door Assy


04 - Door Handles & Accessories


05 - Evaporator & Freezer Control


06 - Ice Maker Assy & Parts


07 - Insulation & Roller Assy


08 - Light Covers & Hinges


09 - Light Switches & Drain Funnel


10 - Machine Compartment


11 - Refrig. Feature, Shelf & Meatkeeper Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12206802E		Assy,ref Dr Fm(black)		Appelez-nous	-
12	12206902E		Assy,fzr Dr Fm(black)		Appelez-nous	-
21	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
22	M0219730		Screw				$ 7.65
31	M0219730		Screw				$ 7.65
32	876370		Insulation, Batt   (Replaces: B0523561)				$ 243.14
42	W11708403		Stop, Door (blk)   (Replaces: 10447109)			Immediately	$ 14.75
61	W11708403		Stop, Door (blk)   (Replaces: 10447109)			Immediately	$ 14.75
62	10456868		Gasket,frz Dr(black)		Appelez-nous	-
63	10961002		Bushing, Door (blk)		Appelez-nous	-
64	10961002		Bushing, Door (blk)		Appelez-nous	-
71	10423414		Door,dairy		Appelez-nous	-
72	12228801		Liner, Fzr Door		Appelez-nous	-
82	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
91	10456867		Gasket, Ref Dr (black)		Appelez-nous	-
92	12208702		Retainer, Frz Door		Appelez-nous	-
101	10202001		Clip, Retainer		Appelez-nous	-
113	M0310336		Plug, Button (blk)		Appelez-nous	-
121	12228701		Liner, Ref Door		Appelez-nous	-
124	M0310336		Plug, Button (blk)		Appelez-nous	-
231	10686404		Plug, Button(black)		Appelez-nous	-
401	10419108		Retainer, Door Ref.		Appelez-nous	-
551	10419708		Shelf, Ref Door		Appelez-nous	-
571	10502912		Bucket, Ref Door		Appelez-nous	-
1001	WP12246608		Plug, Top Hinge Button (blk)   (Replaces: M0310731)			Immediately	$ 8.15
1002	WP12246608		Plug, Top Hinge Button (blk)   (Replaces: M0310731)			Immediately	$ 8.15

    View Diagram in Separate Window       Print Part List
