SELECT A DIAGRAM

01 - Cabinet Back


02 - Crisper Assy & Freezer Feature Assy


03 - Door Assy


04 - Door Handles & Accessories


05 - Evaporator & Freezer Control


06 - Ice Maker Assy & Parts


07 - Insulation & Roller Assy


08 - Light Covers & Hinges


09 - Light Switches & Drain Funnel


10 - Machine Compartment


11 - Refrig. Feature, Shelf & Meatkeeper Assy

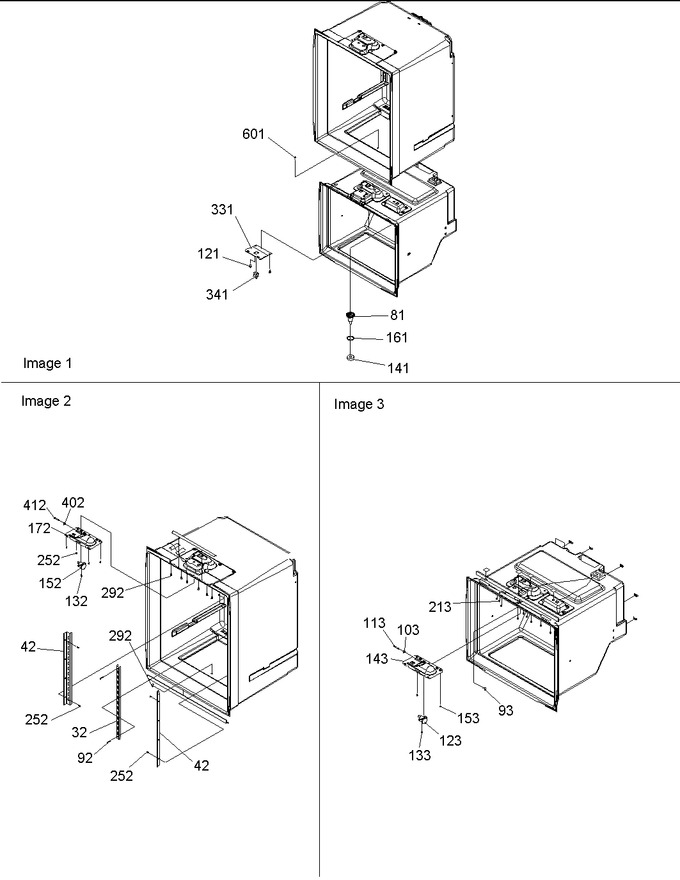

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
32	12435801		Ladder, Center		Appelez-nous	-
42	12435701		Ladder, Side (l/r)		Appelez-nous	-
81	W10815413		Funnel, Drain   (Replaces: D7753903)			Immediately	$ 51.50
92	W10709795		Screw   (Replaces: M0231425)				$ 13.79
93	12991101		Screw, Sm   (Replaces: M0210816)				$ 13.47
103	M0320910		Term		Appelez-nous	-
113	A4539626		Pop Rivet		Appelez-nous	-
121	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
123	D7845102		Socket, Lamp		Appelez-nous	-
132	M0213129		Screw		Appelez-nous	-
133	M0213129		Screw		Appelez-nous	-
141	WPB8381501		Gasket, Drain Tube   (Replaces: B8381501)				$ 7.78
143	D7863904		Housing, Frz Light		Appelez-nous	-
152	D7845102		Socket, Lamp		Appelez-nous	-
153	67006425		Screw, Sm   (Replaces: M0238642)			Immediately	$ 7.30
161	WPM0500703		Seal, O Ring   (Replaces: M0500703)				$ 11.47
172	D7863904		Housing, Frz Light		Appelez-nous	-
213	M0581001		Grommet, Screw		Appelez-nous	-
252	67006425		Screw, Sm   (Replaces: M0238642)			Immediately	$ 7.30
292	M0581001		Grommet, Screw		Appelez-nous	-
331	D7297604		Cover, Light Sw		Appelez-nous	-
341	W11384469		Switch, Light   (Replaces: C3680310)			Immediately	$ 39.09
402	M0320905		Terminal Ground A		Appelez-nous	-
412	A4539626		Pop Rivet		Appelez-nous	-
601	M0581001		Grommet, Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
