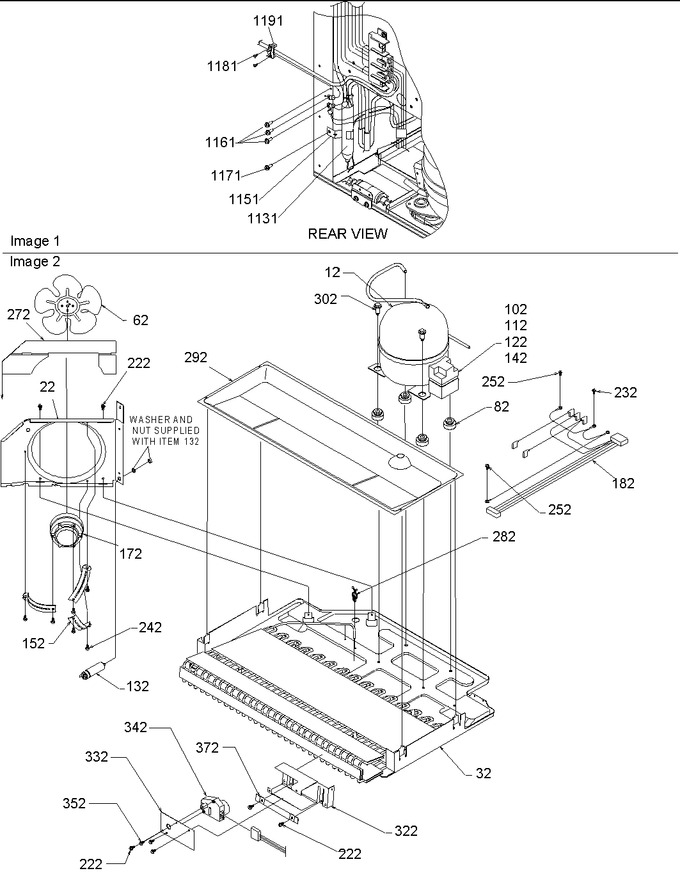

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | W10309997 | Compressor Tc Tpa1410y (Replaces: 12049713) |
|
$ 583.93 | |||||
| 22 | 10426911 | Cond Fan Shrd-e Ct |
|
- | |||||
| 32 | 10481218 | Assy,cond/pan-e Ct |
|
- | |||||
| 62 | B5742604 | Blade, Fan |
|
- | |||||
| 82 | WPW10169124 | Grommet, Compressor (Replaces: 10835901) |
|
$ 7.55 | |||||
| 102 | YB8358601 | Bale Strap |
|
- | |||||
| 112 | 10377019 | Overload- 4tm |
|
- | |||||
| 122 | 10097206 | Relay |
|
- | |||||
| 132 | 10958303 | Capacitor |
|
- | |||||
| 142 | 10757301 | Cover, Terminal |
|
- | |||||
| 152 | 10582501 | Bracket, Cond. Motor |
|
- | |||||
| 172 | 10884505 | Motor, Condensor |
|
- | |||||
| 182 | 12504301 | Harness, Mc |
|
- | |||||
| 222 | WP90767 | Screw, Sm (Replaces: M0224416) |
|
Immediately | $ 8.25 | ||||
| 232 | WP489399 | Screw, Ca (Replaces: M0239216) |
|
$ 7.30 | |||||
| 242 | M0223816 | Screw, Tr |
|
$ 5.27 | |||||
| 252 | 12992301 | Screw, Tf (Replaces: M0231604) |
|
$ 7.32 | |||||
| 272 | 10442702 | Gasket, Cond. Fan |
|
- | |||||
| 282 | B5667304 | Wire Clip |
|
- | |||||
| 292 | 10427404 | Pan, Drain |
|
- | |||||
| 302 | M0221523 | Screw, Shldr |
|
- | |||||
| 322 | 10503201 | Brkt, Timer |
|
- | |||||
| 332 | 12515801 | Cover, Timer Brkt |
|
- | |||||
| 342 | 10129307 | Kit, Defrost Timer (230 Vac) |
|
- | |||||
| 352 | M0216705 | Screw |
|
$ 5.81 | |||||
| 372 | 10542701 | Washer, Brkt |
|
- | |||||
| 1131 | WPB2150504 | Drier (Replaces: B2150504) |
|
$ 136.98 | |||||
| 1151 | 10547001 | Clip, Drier |
|
- | |||||
| 1161 | WP489399 | Screw, Ca (Replaces: M0239216) |
|
$ 7.30 | |||||
| 1171 | WP489069 | Screw (Replaces: M0220617) |
|
Immediately | $ 8.40 | ||||
| 1181 | WP489474 | Screw 1`` (Replaces: M0211021) |
|
Immediately | $ 8.55 | ||||
| 1191 | Y10203701 | Strain Relief |
|
- |
