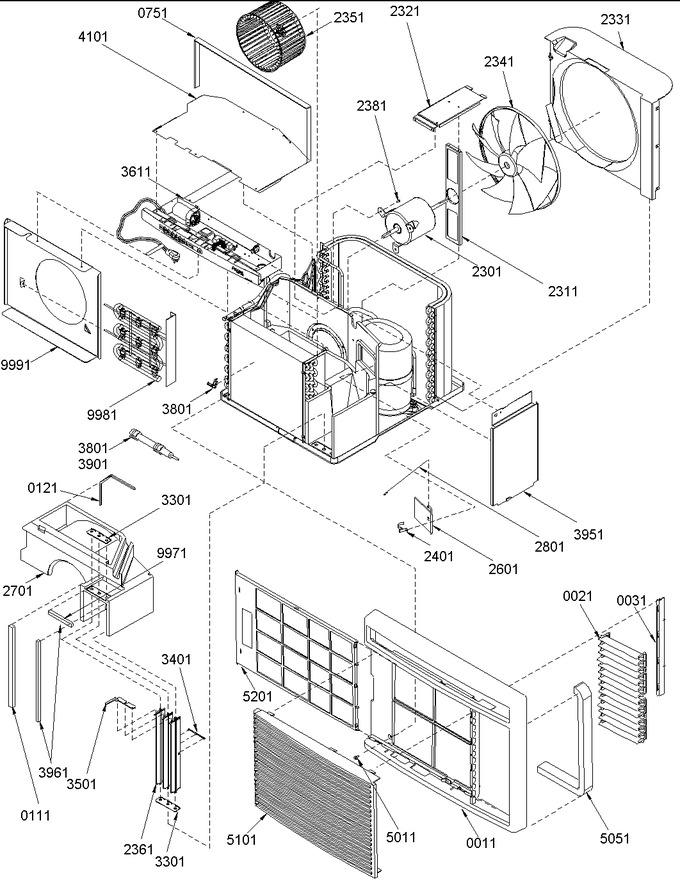

SELECT A DIAGRAM

01 - Chassis Assembly 1


02 - Chassis Assembly 2


03 - Compressor Assembly


04 - Control Assembly


05 - Miscellaeous Information


06 - Outer Case Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	20051901		Front		Appelez-nous	-
21	20062301		Louver, Horizontal		Appelez-nous	-
31	Y20063501		Louver, Retainer		Appelez-nous	-
111	10839712		Gasket		Appelez-nous	-
121	10839713		Gasket (1=1ft.)		Appelez-nous	-
230	20080203		Motor, Fan		Appelez-nous	-
231	20072901		Brkt, Fan Motor		Appelez-nous	-
232	20073101		Brace, Tie		Appelez-nous	-
233	20073001		Shroud, Fan		Appelez-nous	-
234	20071102		Fan, Condenser		Appelez-nous	-
235	20071805		Wheel, Blower		Appelez-nous	-
236	20074701		Louver, Vertical		Appelez-nous	-
238	WP489427		Screw, Tap   (Replaces: M0224956)				$ 7.84
240	20055502		Spring, Exh Door		Appelez-nous	-
260	20051302		Door, Exhaust		Appelez-nous	-
270	20067404		Scroll, Top		Appelez-nous	-
280	Y20055607		Actuator, Exh Door		Appelez-nous	-
330	20051502		Base, Pivot		Appelez-nous	-
340	20075501		Bar, Lower Stabilizer		Appelez-nous	-
350	20051404		Gang Bar, Vertical Louver		Appelez-nous	-
361	20090302		Tie Strap		Appelez-nous	-
380	Y20065303		Holder, T`stat Bulb		Appelez-nous	-
390	20065401		Wire Form		Appelez-nous	-
395	20072801		Panel, Right Side		Appelez-nous	-
396	10839706		Gasket (per Foot)		Appelez-nous	-
410	20091001		Cover, Top		Appelez-nous	-
501	M0219730		Screw				$ 7.65
505	10839701		Gasket 1.25 X .75		Appelez-nous	-
510	20052001		Front, Insert		Appelez-nous	-
520	20075301		Filter, 200		Appelez-nous	-
751	10839710		Gasket		Appelez-nous	-
997	10839705		Gasket (1=1ft.)		Appelez-nous	-
998	20066404		Heater		Appelez-nous	-
NI	M0211020		Screw		Appelez-nous	-
NI	20074302		Shield, Heater		Appelez-nous	-
