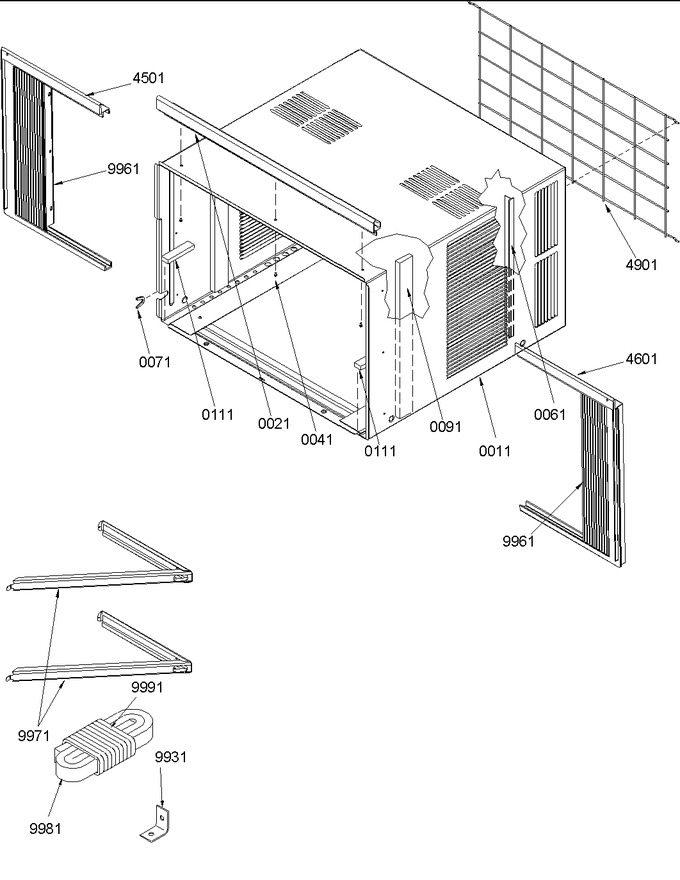

06 - Outer Case Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 20106702 | Outer Case, Tox |
|
- | |||||
| 41 | WP693995 | Screw, Sm Stl (Replaces: M0245203) |
|
Immediately | $ 7.55 | ||||
| 61 | Y20065009 | Seal Strip, Outer |
|
- | |||||
| 71 | 20075701 | Grommet, Power Cord |
|
- | |||||
| 91 | 10839707 | Gasket |
|
- | |||||
| 111 | 10839807 | Gasket |
|
- | |||||
| 490 | WRC23K | Grille, Rear (200) (Replaces: 20063801) |
|
$ 55.72 | |||||
| 491 | WP90767 | Screw (Replaces: M0216716) |
|
Immediately | $ 8.25 | ||||
| 492 | M0219730 | Screw |
|
$ 7.65 | |||||
| 493 | 10228318 | Kit-window Mounting-curtains |
|
- | |||||
| 494 | Y20064101 | Sub 20064101a Drain |
|
- | |||||
| 495 | 20065102 | Clip, Basepan |
|
- |
