SELECT A DIAGRAM

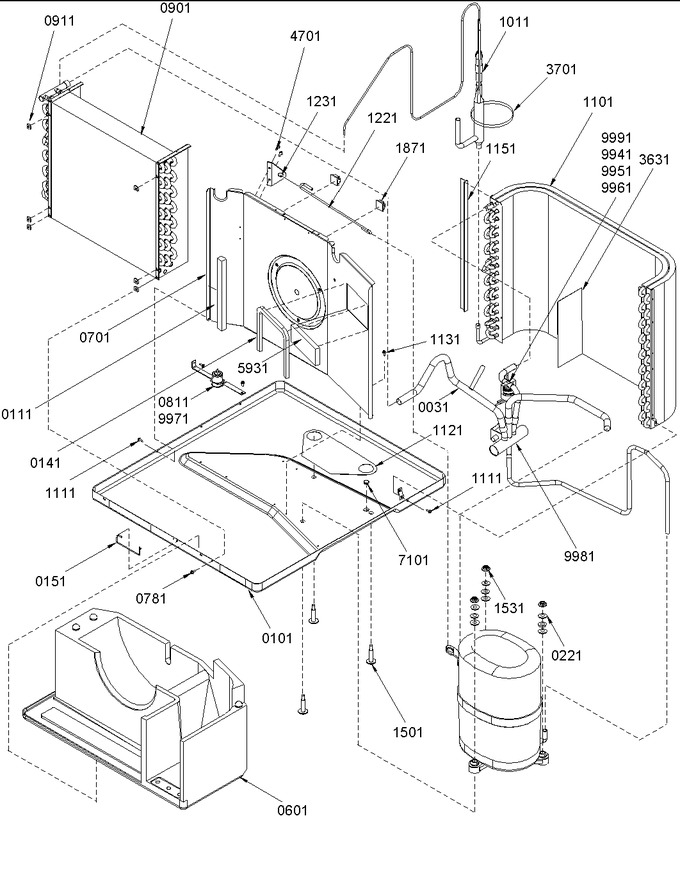

01 - Chassis Assembly 1


02 - Chassis Assembly 2


03 - Compressor Assembly


04 - Control Assembly


05 - Miscellaeous Information


06 - Outer Case Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
31	20105501		Assy, Tube Evap		Appelez-nous	-
101	20067206		Basepan		Appelez-nous	-
101	20106001		Assy, Capillary		Appelez-nous	-
110	20104801		Assy, Condenser		Appelez-nous	-
111	10839712		Gasket		Appelez-nous	-
112	20106301		Pad, Protector		Appelez-nous	-
113	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 8.25
115	Y20065009		Seal Strip, Outer		Appelez-nous	-
122	20093601		Tie, Compressor		Appelez-nous	-
123	20093701		Bracket, Comp. Tie		Appelez-nous	-
141	10839716		Gasket 1/2 By 3/8		Appelez-nous	-
150	20109101		Bolt, Shoulder		Appelez-nous	-
151	20088701		Handle, Basepan		Appelez-nous	-
153	20103302		Nut, Flange		Appelez-nous	-
187	M0104102		Clip, Cord				$ 8.10
221	M0274071		Washer, Flat		Appelez-nous	-
363	20089901		Baffle, Condensate		Appelez-nous	-
370	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
593	10839727		Gasket, Foam		Appelez-nous	-
601	20067302		Scroll, Bottom		Appelez-nous	-
701	20067604		Pnl, Partition		Appelez-nous	-
710	M0311109		Plug, Metal Hole		Appelez-nous	-
811	20096902		Valve, Basepan		Appelez-nous	-
901	20104601		Assy, Evaporator		Appelez-nous	-
911	M0586001		Screw		Appelez-nous	-
994	10702401		Lock-nut		Appelez-nous	-
995	10702301		Cover, Coil		Appelez-nous	-
996	10702202		Coil, Solenoid		Appelez-nous	-
997	20103801		Brkt, Dr Valve		Appelez-nous	-
998	10680702		Valve, Reversing		Appelez-nous	-
NI	20105601		Distributor		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
