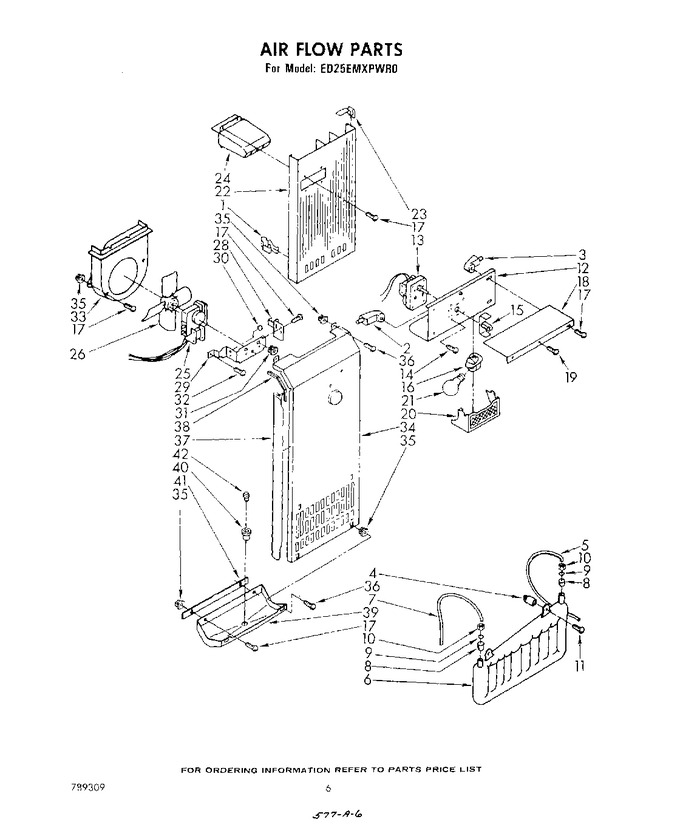

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2215823		Clip, Air Duct   (Replaces: 842534)				$ 10.42
2	983660		Support, Stud		Appelez-nous	-
3	992720		Support, Stud		Appelez-nous	-
4	843436		Grommet		Appelez-nous	-
5	W10823511		Tube, Water   (Replaces: 944681)			Immediately	$ 32.41
6	WP2256126		Water Reservoir   (Replaces: 839912)				$ 168.85
7	W10823511		Tube, Water   (Replaces: 939010)			Immediately	$ 32.41
8	4387491		Insert, Tube   (Replaces: 841707)				$ 7.84
9	00753257		``o`` Ring Seal   (Replaces: 488819)			Immediately	$ 295.49
10	488795		Nut, Compression		Appelez-nous	-
11	488775		Screw, 8 X 1-1/2		Appelez-nous	-
12	989716		Bracket, Ice Dispenser		Appelez-nous	-
13	851152		Motor, Ice Dispenser		Appelez-nous	-
14	303776		Screw, 8-32 X 5/16   (Replaces: 488906)		Appelez-nous	-
15	WPW10169511		Coupling, Motor   (Replaces: 983663)				$ 23.34
16	4387478		Socket Assembly   (Replaces: 851067)			Immediately	$ 110.16
17	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
18	989715		Cover, Ice Dispenser		Appelez-nous	-
19	00487294		Screw, 8-32 X 3/8   (Replaces: 487294)				$ 175.09
20	983359		Light Lens, Dispenser		Appelez-nous	-
21	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
22	983651		Duct, Air		Appelez-nous	-
23	946697		Baffle, Air		Appelez-nous	-
24	983652		Air Deflector		Appelez-nous	-
25	SM999		Fan, Motor   (Replaces: 945523)			Immediately	$ 30.26
26	992920		Blade, Fan				$ 39.91
28	548263		Fan, Bracket Double		Appelez-nous	-
29	938224		Fan Bracket, Single		Appelez-nous	-
30	548268		Fan, Grommet		Appelez-nous	-
31	538449		Screw Grommet		Appelez-nous	-
32	WP489069		Screw, 8 X 1/2   (Replaces: 488772)			Immediately	$ 7.86
33	983650		Scroll Fan		Appelez-nous	-
34	1101038		Evaporator, Cover		Appelez-nous	-
35	848445		Grommet		Appelez-nous	-
36	WP488729		Screw, 8-15 X 1/2   (Replaces: 488992)			Immediately	$ 7.79
37	983649		Gasket, Evaporator Cover		Appelez-nous	-
38	987178		Gasket, Cover Top		Appelez-nous	-
39	934121		Pan, Drain		Appelez-nous	-
40	836088		Fitting, Drain Pan		Appelez-nous	-
41	934130		Gasket, Drain Pan		Appelez-nous	-
42	842259		Cap, Drain		Appelez-nous	-
