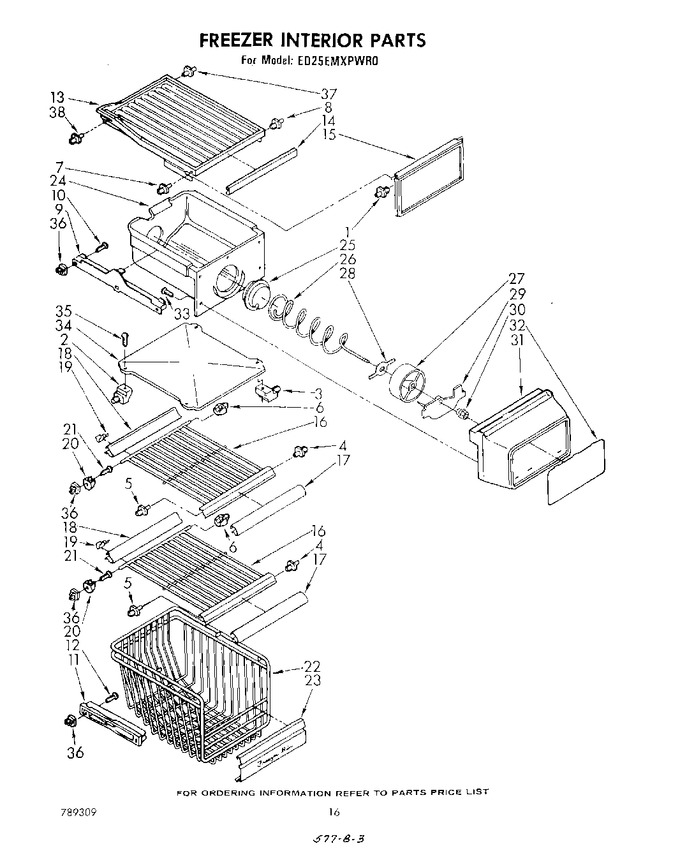

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	521516		Shelf, Stud		Appelez-nous	-
2	836374		Retainer, Stud		Appelez-nous	-
3	988774		Retainer, Stud		Appelez-nous	-
4	936957		Shelf, Stud		Appelez-nous	-
5	529758		Shelf, Stud		Appelez-nous	-
6	937516		Shelf, Saddle (r.s.)		Appelez-nous	-
7	536410		Shelf, Stud		Appelez-nous	-
8	991924		Stud, Shelf		Appelez-nous	-
9	982321		Slide, Freezer Bin		Appelez-nous	-
10	487979		Screw, 8 X 1		Appelez-nous	-
11	837557		Track, Shelf (l.s.)		Appelez-nous	-
11	837554		Track, Shelf (r.s.)		Appelez-nous	-
12	W11693756		Screw, 8-15 X 5/8   (Replaces: 487042)			Immediately	$ 14.76
13	983356		Solid, Shelf		Appelez-nous	-
14	986437		Trim, Shelf		Appelez-nous	-
15	1101426		Frontice, Compartment		Appelez-nous	-
16	943996		Shelf, Freezer		Appelez-nous	-
17	985542		Trim Shelf, Front		Appelez-nous	-
18	935496		Reflector, Shelf		Appelez-nous	-
19	939348		Clip, Reflector		Appelez-nous	-
20	836492		Shelf Stud, Saddle L.s.		Appelez-nous	-
21	WP488729		Screw, 8-15 X 1/2   (Replaces: 487109)			Immediately	$ 8.28
22	935499		Basket, Freezer		Appelez-nous	-
23	985546		Trim, Freezer Basket		Appelez-nous	-
24	983667		Ice Container				$ 80.84
25	W10749708		Coupling, Ice Container   (Replaces: 983668)				$ 27.44
26	946191		Conveyor, Ice Container		Appelez-nous	-
27	4388736		Drum, Ice Dispenser   (Replaces: 946193)				$ 96.97
28	4388736		Drum, Drive Bar   (Replaces: 946192)				$ 96.97
29	946194		Baffle		Appelez-nous	-
30	946195		Nut, Bearing		Appelez-nous	-
31	1101923		Front Cover, Ice Dispenser		Appelez-nous	-
32	983677		Overlay, Front Cover		Appelez-nous	-
33	WP488787		Screw, (8-18 X 1/2)   (Replaces: 488886)				$ 11.26
34	989718		Baffle, Ice Container		Appelez-nous	-
35	WP488729		Screw, 8 X 1/2   (Replaces: 488320)			Immediately	$ 8.28
36	842339		Grommet		Appelez-nous	-
37	937513		Stud, Shelf		Appelez-nous	-
38	521878		Shelf Stud		Appelez-nous	-
