Diagram for 02 - Cabinet
02 - Cabinet

Diagram for 03 - Breaker And Partition
03 - Breaker And Partition

Diagram for 04 - Airflow
04 - Airflow

Diagram for 05 - Dispenser Front
05 - Dispenser Front

Diagram for 06 - Refrigerator Door
06 - Refrigerator Door

Diagram for 07 - Freezer Door
07 - Freezer Door

Diagram for 08 - Refrigerator Interior , Lit/optional
08 - Refrigerator Interior , Lit/optional

Diagram for 09 - Freezer Interior
09 - Freezer Interior

Diagram for 10 - Unit
10 - Unit

Diagram for 11 - Ice Maker
11 - Ice Maker

Diagram for 12 - Airflow And Control
12 - Airflow And Control


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 1101409 Refrigerator, Door Panel (toast) Appelez-nous -
1 1101410 Refrigerator Door Panel (platinum) Appelez-nous -
1 941292 Refrigerator, Door Panel (white) Appelez-nous -
1 941293 Refrigerator Door Panel (coffee) Appelez-nous -
1 941294 Refrigerator, Door Panel (golden Harvest) Appelez-nous -
1 941296 Refrigerator, Door Panel (almond) Appelez-nous -
2 988402 Tap Plate Appelez-nous -
3 4318165 Door, Cam Upper   (Replaces: 986758) In-Stock Immediately $ 27.36

4 WP489069 Screw, 8 X 1/2   (Replaces: 488938) In-Stock Immediately $ 7.86

5 988420 Bracket, Door Stop Appelez-nous -
6 988421 Shim Appelez-nous -
7 488549 Screw, 8 X 5/8 Appelez-nous -
8 509929 Cap, Hinge Appelez-nous -
9 534927 Hole Plug Appelez-nous -
10 982887 Retainer, Side Appelez-nous -
11 836121 Retainer, Top & Bottom Appelez-nous -
12 939341 Door, Gasket Magnetic Appelez-nous -
13 WP489069 Screw, No.7 X 1/2   (Replaces: 489101) In-Stock Immediately $ 7.86

13 WP681414 Screw ((repair))   (Replaces: 488552) In-Stock Immediately $ 7.85

14 1105718 Handle, Center Appelez-nous -
15 935103 Center End Cap (2) Appelez-nous -
16 935075 Shim, Handle Center (2) Appelez-nous -
17 941242 Screw Anchor (2) Appelez-nous -
18 WPW10141645 Screw, 8 X 1/2 (4)   (Replaces: 489084) Special Order $ 7.67

19 1105719 Insert, Handle Appelez-nous -
20 1105720 Insert, Handle Appelez-nous -
21 941297 Retainer Insert Appelez-nous -
22 941262 Retainer Insert Appelez-nous -
23 941259 End Cap Appelez-nous -
26 489075 Screw, 10-32 X 3/8 Appelez-nous -
27 988620 Interior Door Panel Appelez-nous -
28 1105713 Trim, Door Shelf Appelez-nous -
29 849223 Retainer, Door Trim Appelez-nous -
30 1105714 Trim Door Shelf Appelez-nous -
31 00487953 Screw, 8-18 X 1/2   (Replaces: 487953) Special Order $ 177.40

31 WP488787 Screw (repair)   (Replaces: 488704) Special Order $ 10.58

32 935322 Compartment Door Appelez-nous -
33 983804 Shelf Ladder Appelez-nous -
34 537095 Clip, Expansion Appelez-nous -
35 WP488729 Screw, 8 X 1/2   (Replaces: 488320) In-Stock Immediately $ 7.79

36 1104899 Escutcheon, Nameplate Appelez-nous -
38 991259 Tape Strip Appelez-nous -
39 1105715 Shelf, Door Cantilever Appelez-nous -
41 520747 Tray, Butter Appelez-nous -
42 WP849996 Support, Trim Shelf   (Replaces: 849996) Special Order $ 7.57

43 WP1104787 Shim, Door Closer   (Replaces: 1104787) Special Order $ 7.58


    View Diagram in Separate Window     Print Icon   Print Part List

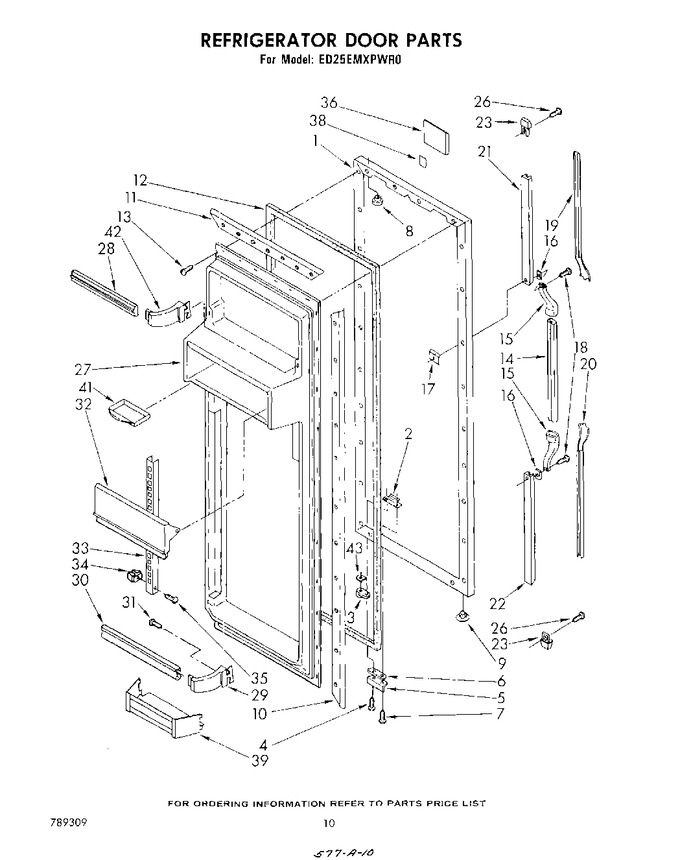

Diagram for ED25EMXPWR0
