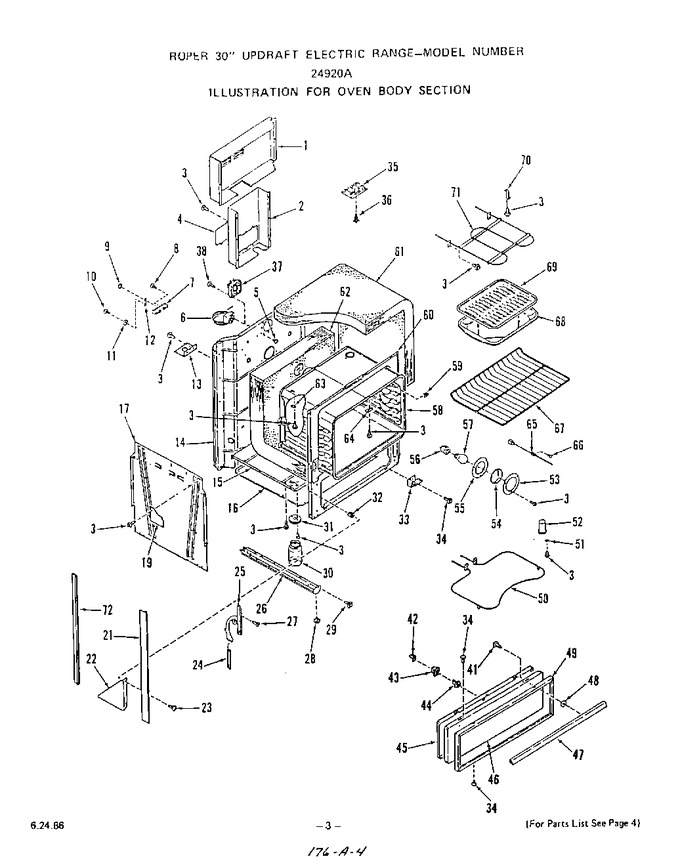

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	334616		Wire Cover-rear Upper		Appelez-nous	-
2	332449		Wire Cover-rear Lower		Appelez-nous	-
3	327320		Screw 10-16x7/16``		Appelez-nous	-
4	332450		Access Plate		Appelez-nous	-
5	70655		Screw 8-32x1/4``		Appelez-nous	-
6	331385		Xhi-limit Thermostat		Appelez-nous	-
7	290105		Xjunction Block		Appelez-nous	-
8	313190		Screw 10-32x1``		Appelez-nous	-
9	97816		Hex Nut 10-32		Appelez-nous	-
10	313191		Screw 10-32x7/16``		Appelez-nous	-
11	299425		Washer		Appelez-nous	-
12	327255		Ground Strap		Appelez-nous	-
13	327259		Range Service Mounting Plate		Appelez-nous	-
14	333519		Main Back		Appelez-nous	-
15	335765		Insulation Retainer-bottom		Appelez-nous	-
16	334676		Bottom-compartment		Appelez-nous	-
17	334627		Insulation Retainer-sides		Appelez-nous	-
19	334440		Wire Cover-end		Appelez-nous	-
21	332441		Left		Appelez-nous	-
21	332440		Right		Appelez-nous	-
22	332289		Left		Appelez-nous	-
22	332291		Right		Appelez-nous	-
23	314124		Screw 8abx5/8``		Appelez-nous	-
24	326963		Spring-oven Door (2 Req)		Appelez-nous	-
24	326013		Left		Appelez-nous	-
24	326012		Right		Appelez-nous	-
26	333975		Base W/levelers (2 Req)		Appelez-nous	-
27	331704		Screw		Appelez-nous	-
28	326052		Leg Levelers (4 Req)		Appelez-nous	-
29	104520		Screw 10-32 X 17/32``		Appelez-nous	-
30	329034		Grease Jar (2 Req)		Appelez-nous	-
31	329010		Jar Lid (2 Req)		Appelez-nous	-
32	330031		Expansion Nut Spacer (8 Req)   (Replaces: 312605)			Immediately	$ 17.93
33	335058		Hinge		Appelez-nous	-
34	316849		Screw-10-32x1/2``		Appelez-nous	-
35	334701		Xcircuit Board W/relay & Transformers		Appelez-nous	-
36	331469		Circuit Board Spacer		Appelez-nous	-
37	335558		Xfan		Appelez-nous	-
38	327256		Screw 6-32x7/8``		Appelez-nous	-
41	102430		Screw 10 - 32 X 1/2``		Appelez-nous	-
42	335059		Bracket-catch		Appelez-nous	-
43	335060		Catch		Appelez-nous	-
44	335061		Strike		Appelez-nous	-
45	335063		Lower Door Lining		Appelez-nous	-
46	330485		Lower Door Panel		Appelez-nous	-
47	318969		Handle		Appelez-nous	-
48	DE81-05147A		Spacer, Door Handle   (Replaces: 107158)				$ 205.79
49	326364		208 Volt (optional)		Appelez-nous	-
49	WG02F05414		240 Volt   (Replaces: 325883)			Immediately	$ 111.99
49	330120		Lower Door Panel Frame		Appelez-nous	-
51	335178		Washer		Appelez-nous	-
52	334761		Vent Tube		Appelez-nous	-
53	229372		Retainer-light Lens		Appelez-nous	-
54	114989		Light Lens		Appelez-nous	-
55	229371		Lens Gasket		Appelez-nous	-
56	87883		Light Bulb Holder		Appelez-nous	-
57	DA96-01243C		Xlight Bulb   (Replaces: 111257)				$ 144.00
58	331458		Oven Body		Appelez-nous	-
59	291123		Thermostat Bulb Clip		Appelez-nous	-
60	335160		Front Frame		Appelez-nous	-
61	333472		Insulation-top & Sides		Appelez-nous	-
62	308861		Insulation-bottom & Back		Appelez-nous	-
63	237762		Thermostat Bulb Cover Plate		Appelez-nous	-
64	304835		Cover		Appelez-nous	-
65	12001656		Xsensor   (Replaces: 334300)			Immediately	$ 45.13
66	327621		Screw 6-20x3/8``		Appelez-nous	-
67	326069		Oven Rack (2 Req)		Appelez-nous	-
68	331592		Broiler Pan		Appelez-nous	-
69	326297		Broiler Pan Grid		Appelez-nous	-
70	326938		240 Volt		Appelez-nous	-
70	326939		208 Volt (optional)		Appelez-nous	-
70	324808		Broil Element Support		Appelez-nous	-
72	334429		Trim Extension		Appelez-nous	-
