02 - Main Top
03 - Oven Body
04 - Door Lock
05 - Oven Door
06 - Electric Grill , Electric Coil
07 - Griddle , Griddle/grill Cover
08 - Rotisserie Kit , Wire Harness
SELECT A DIAGRAM
New Model Search:

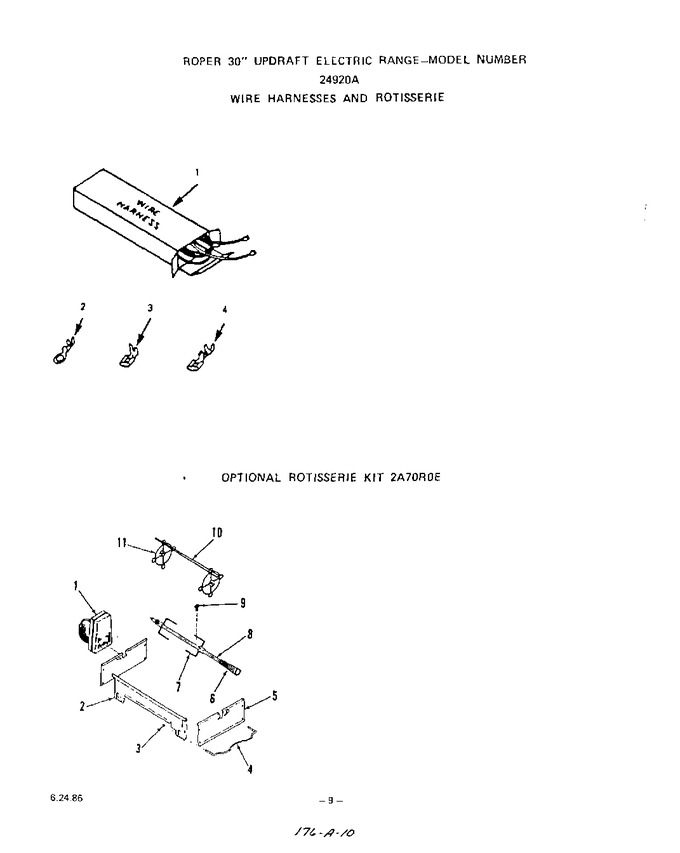

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 334401 | Limit Switches |
|
- | |||||
| 1 | 332535 | Xmotor |
|
- | |||||
| 1 | 333274 | Sensor |
|
- | |||||
| 1 | 335560 | Relay |
|
- | |||||
| 1 | 335561 | Control |
|
- | |||||
| 1 | 334390 | Main (left) |
|
- | |||||
| 1 | 334686 | Main (right) |
|
- | |||||
| 2 | 332474 | Housing-side |
|
- | |||||
| 2 | 238387 | Eyelet Terminal |
|
- | |||||
| 3 | 238389 | Flag Terminal |
|
- | |||||
| 3 | 330786 | Nut-push On |
|
- | |||||
| 4 | 238393 | Faston Terminal |
|
- | |||||
| 4 | 332480 | Frame-end |
|
- | |||||
| 5 | 332476 | Housing-front & Rear |
|
- | |||||
| 6 | 333188 | Handle |
|
- | |||||
| 7 | 88420 | Skewer |
|
- | |||||
| 8 | 333187 | Spit |
|
- | |||||
| 9 | 70287 | Thumbscrew |
|
- | |||||
| 10 | 329711 | Spit-shish Kabob |
|
- | |||||
| 11 | 329710 | Support-skish Kabob |
|
- | |||||
| 333644 | Xinstallation Guide |
|
- | ||||||
| 333643 | Xuse & Care Manual |
|
- | ||||||
| 334787 | Xrepair Parts List |
|
- |
