1999CIWW (BOM: P1121502W W) | Leon's : Appliance Model Lookup

SELECT A DIAGRAM

Diagram for 01 - Cabinet Back

01 - Cabinet Back

Diagram for 02 - Drain And Rollers

02 - Drain And Rollers

Diagram for 03 - Evap And Air Handling

03 - Evap And Air Handling

Diagram for 04 - Fz Door

Diagram for 05 - Fz Door

Diagram for 06 - Fz Shelving And Ref Light

06 - Fz Shelving And Ref Light

Diagram for 07 - Ice And Water Cavity

07 - Ice And Water Cavity

Diagram for 08 - Ice Bucket And Ice Maker

08 - Ice Bucket And Ice Maker

Diagram for 09 - Machine Compartment

09 - Machine Compartment

Diagram for 10 - Ref Door

Diagram for 11 - Ref Door

Diagram for 12 - Ref Shelving And Drawers

12 - Ref Shelving And Drawers

Diagram for 13 - Ref/fz Control And Cabinet Part

13 - Ref/fz Control And Cabinet Part

New Model Search:

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8987101		Seal, Door Dike		Appelez-nous	-
2	C8987103		Seal, Door Dike		Appelez-nous	-
3	B0523562		Insul. By The Ft.		Appelez-nous	-
4	B0523583		Insulation, Per Ft.		Appelez-nous	-
5	C8982801		Retainer, Door Liner		Appelez-nous	-
6	10284003WQ		Fz Dr Fom As Wh Cfc11		Appelez-nous	-
6	10284003LQ		Assy, Frz Door (almond)		Appelez-nous	-
7	D7783506		Half Shelf Fr. Dr.		Appelez-nous	-
8	D7783605		Shelf Frz Dr		Appelez-nous	-
9	D7783705		Bucket Fz. Door		Appelez-nous	-
10	10359702		Gasket (w Frz Dr)		Appelez-nous	-
11	D7828503		Inner Door Frz		Appelez-nous	-
12	D7828601		Retainer, Door Liner		Appelez-nous	-
13	M0219730		Screw				$ 7.65

View Diagram in Separate Window Print Part List

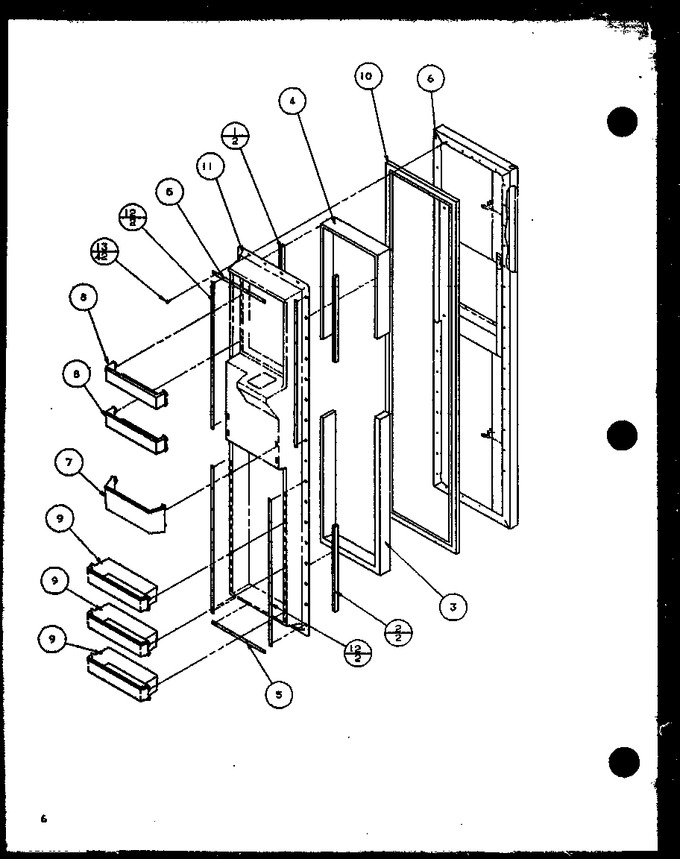

Diagram for 1999CIWW (BOM: P1121502W W)
