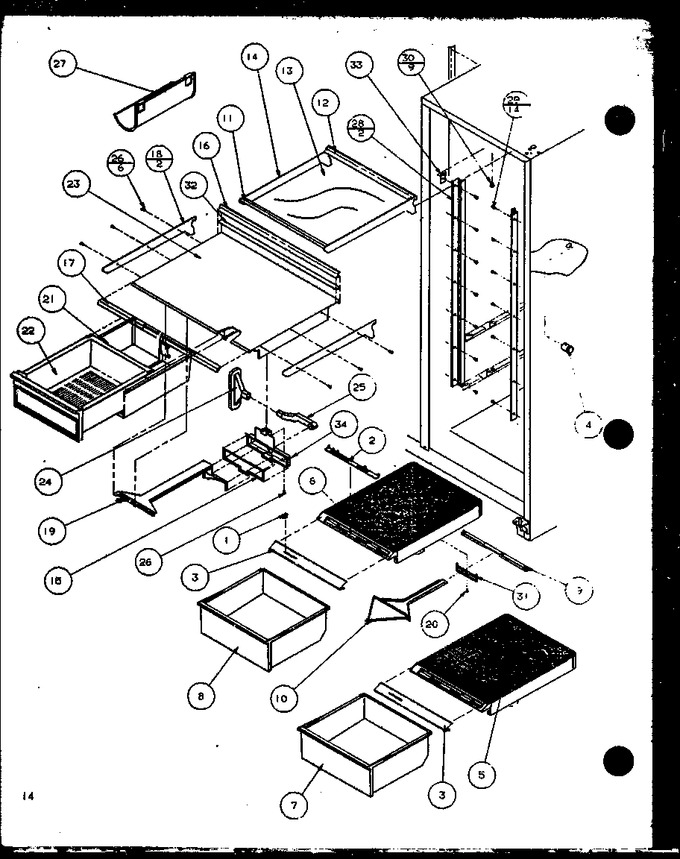

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8908301		Knob Humidity A-k		Appelez-nous	-
2	D7587705		Slide Humidity		Appelez-nous	-
3	D7616640		Trim Front Crisper		Appelez-nous	-
3	D7616641		Trim, Front Crisper		Appelez-nous	-
4	10033201		Deflector, Air		Appelez-nous	-
5	D7796401		Crisper Top		Appelez-nous	-
6	D7796402		Crisper Top		Appelez-nous	-
7	D7797810		Net-pan,fruit		Appelez-nous	-
8	D7797809		Net-pan,crisper		Appelez-nous	-
9	D7764103		Damper, Humidity Center		Appelez-nous	-
10	D7782203		Slide Crisper Cont.		Appelez-nous	-
11	C8913507		Trim, Front Shelf		Appelez-nous	-
12	C8913603		Trim, Shelf Rear		Appelez-nous	-
13	10036002		Glass Shelf		Appelez-nous	-
14	D7871005		Frame Cont. Shelf		Appelez-nous	-
20	M0230017		Screw,tc		Appelez-nous	-
27	D7547609		Rack Bottle V		Appelez-nous	-
28	D7789801		Ladder, Cantilever		Appelez-nous	-
29	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 6.95
30	M0580007		Grommet, Screw		Appelez-nous	-
31	D7807601		Support		Appelez-nous	-
32	M0275163		Tape Per Roll		Appelez-nous	-
33	C8992301		Bracket		Appelez-nous	-
NI	R0179141		Glass Crisper Top Assy		Appelez-nous	-
NI	D7871814		Glass Shelf Assy Q		Appelez-nous	-
NI	D7872707		Crisper Top Assy Q		Appelez-nous	-
