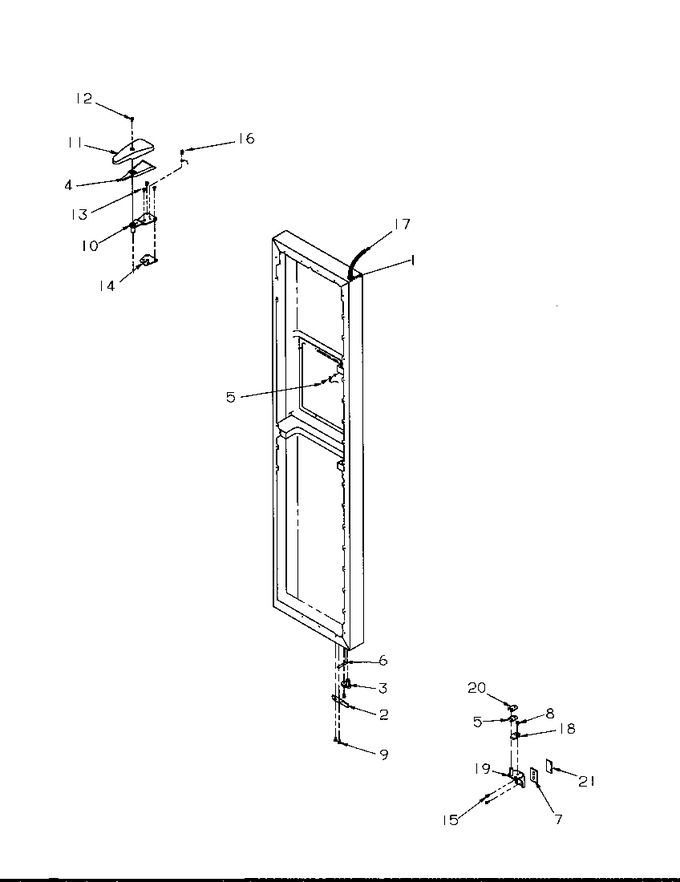

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP67004977		Bushing, Top   (Replaces: C8964401)				$ 8.20
2	C8972405		Stop-w Door		Appelez-nous	-
3	R0181181		Closure-w Door   (Replaces: 12113201)			Immediately	$ 7.55
4	10126603		Foil, Hinge Cover		Appelez-nous	-
5	WP489399		Screw   (Replaces: M0232903)				$ 7.30
6	WPB5705307		Tube, Plastic , 68``   (Replaces: B5705321)				$ 13.05
7	10399502		Kit,btm Hinge Shim		Appelez-nous	-
7	10399501		Kit,btm Hinge Shim		Appelez-nous	-
9	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
10	10495803		Hinge, Top (e-ct)		Appelez-nous	-
11	10504007		Cover, Hinge (white)		Appelez-nous	-
12	WP8281196		Screw, Mach   (Replaces: M0202336)			Immediately	$ 7.55
13	R9800670		Kit, Screw   (Replaces: M0226331)				$ 10.58
14	B8389007		Shim, Top Hinge		Appelez-nous	-
15	WP67006715		Screw   (Replaces: M0233847)				$ 7.55
16	W11214483		Screw, Mach   (Replaces: M0202321)				$ 14.72
17	10952101		Harness-fz Door		Appelez-nous	-
18	R0181181		Kit,dr Closure   (Replaces: 12113501)			Immediately	$ 7.55
19	10496107		Kit,hinge Lh Btm(w)		Appelez-nous	-
20	B8387702		Shim, Door Closure		Appelez-nous	-
20	B8387701		Shim, Door Closure		Appelez-nous	-
21	10860201		Kit, Bot.hinge Shim		Appelez-nous	-
