SELECT A DIAGRAM

01 - Cabinet Back


02 - Crushed Ice Bucket Parts


03 - Drain System And Rollers


04 - Evap And Air Handling Parts


05 - Fz Door


06 - Fz Door Hinge And Trim Parts


07 - Fz Shelving And Ref Light


08 - Ice And Water Cavity Assy


09 - Ice And Water Cavity Parts


10 - Ice Maker Parts


11 - Machine Compartment


12 - Ref Door


13 - Ref Door Hinge And Trim Parts


14 - Ref Shelving And Drawers


15 - Ref/fz Controls And Cabinet Parts

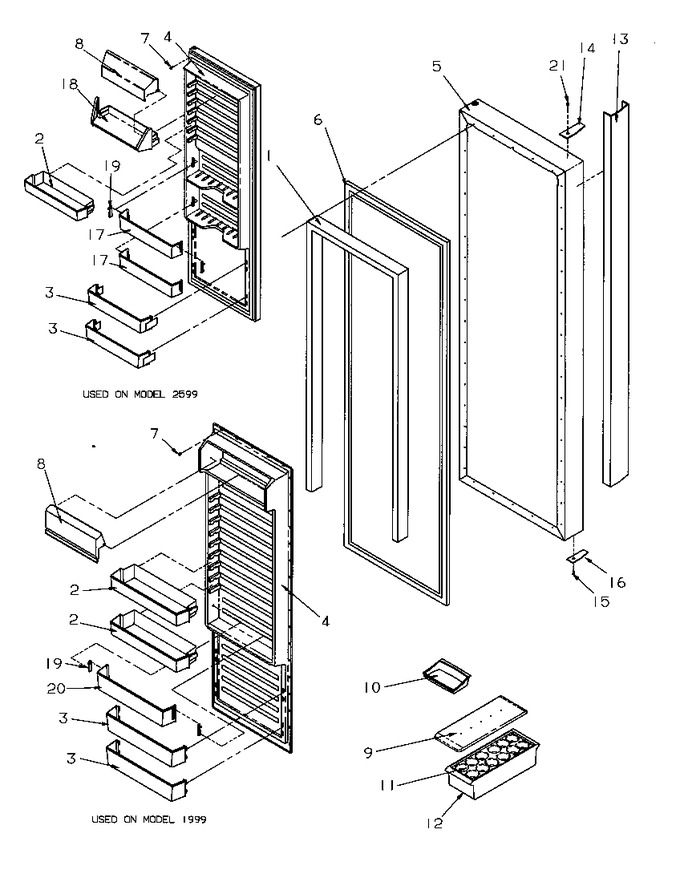

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B0523563		Insulation Ft. K		Appelez-nous	-
2	10580004		Bucket-ref Door		Appelez-nous	-
3	10580104		Shelf, Ref Door		Appelez-nous	-
4	10579901		Liner, Refr Door		Appelez-nous	-
5	10580905W		Ass`y, Ref Dr Foam		Appelez-nous	-
6	10359705		Gasket, Door (w Ref)		Appelez-nous	-
7	M0219730		Screw				$ 7.65
8	10581004		Door, Dairy		Appelez-nous	-
9	10436404		Lid, Utility				$ 60.85
10	10310901		Tray, Butter		Appelez-nous	-
11	10436505		Tray, Egg		Appelez-nous	-
12	10423128		Bin-utility		Appelez-nous	-
13	12106701		Handle, Door (white)		Appelez-nous	-
14	C8878901		End Cap, Handle		Appelez-nous	-
15	8169479		Screw   (Replaces: M0215318)				$ 6.95
16	C8878902		End Cap, Handle		Appelez-nous	-
19	10202001		Clip, Retainer		Appelez-nous	-
20	10580302		Shelf-gallon		Appelez-nous	-
21	8169479		Screw   (Replaces: M0215318)				$ 6.95
