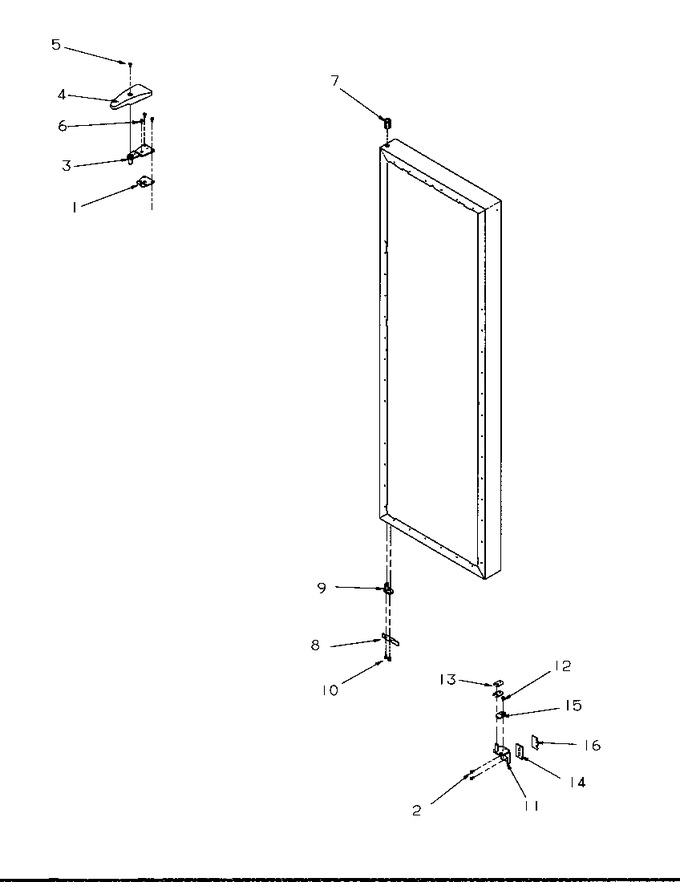

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | B8389007 | Shim, Top Hinge |
|
- | |||||
| 2 | WP67006715 | Screw (Replaces: M0233847) |
|
$ 7.19 | |||||
| 3 | 10495803 | Hinge, Top (e-ct) |
|
- | |||||
| 4 | 10504007 | Cover, Hinge (white) |
|
- | |||||
| 5 | WP8281196 | Screw, Mach (Replaces: M0202336) |
|
Immediately | $ 7.19 | ||||
| 6 | R9800670 | Kit, Screw (Replaces: M0226331) |
|
$ 9.38 | |||||
| 7 | 10393802 | Bushing, Door (wht) |
|
- | |||||
| 8 | C8972405 | Stop-w Door |
|
- | |||||
| 9 | R0181181 | Closure, Door (wht) (Replaces: 12113202) |
|
Immediately | $ 7.19 | ||||
| 10 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.00 | |||||
| 11 | 10496108 | Hinge, Bottom |
|
- | |||||
| 13 | B8387701 | Shim, Door Closure |
|
- | |||||
| 13 | B8387702 | Shim, Door Closure |
|
- | |||||
| 14 | 10399501 | Kit,btm Hinge Shim |
|
- | |||||
| 14 | 10399502 | Kit,btm Hinge Shim |
|
- | |||||
| 15 | R0181181 | Kit,dr Closure (Replaces: 12113501) |
|
Immediately | $ 7.19 | ||||
| 16 | 10860201 | Kit, Bot.hinge Shim |
|
- |
