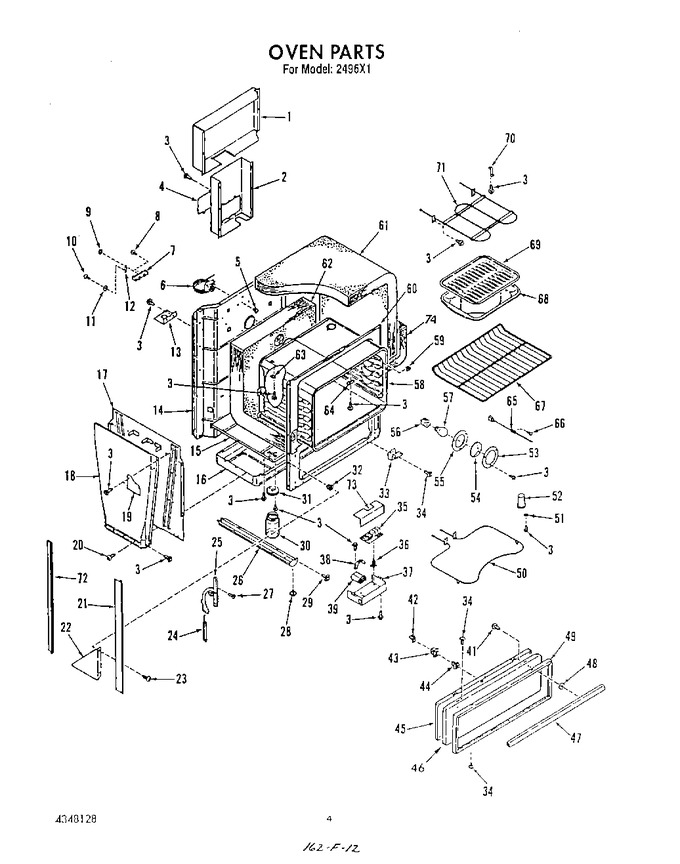

1	4354917		Wire Cover, Rear - Upper		Appelez-nous	-
2	4336825		Wire Cover, Lower Rear		Appelez-nous	-
3	WP681414		Screw 10-16x7/16   (Replaces: 4335248)			Immediately	$ 7.62
4	4336826		Plate, Access		Appelez-nous	-
5	4351426		Screw No.8-32x1/4		Appelez-nous	-
6	4336545		Thermostat, Hi-limit		Appelez-nous	-
7	WP8203546		Junction Block   (Replaces: 4326821)			Immediately	$ 27.12
8	4331572		Screw, No.10-32x1		Appelez-nous	-
9	4354975		Nut, Hex 10-32		Appelez-nous	-
10	4331573		Screw No.10-32x7/16		Appelez-nous	-
11	4327921		Washer		Appelez-nous	-
12	4335219		Strap, Ground		Appelez-nous	-
13	4335223		Service Plate		Appelez-nous	-
14	4336810		Back		Appelez-nous	-
15	4337573		Retainer, Bottom Insulation		Appelez-nous	-
16	4336691		Plenum		Appelez-nous	-
17	4337266		Retainer, Side Insulation		Appelez-nous	-
18	4336709		Vent Box		Appelez-nous	-
19	4337217		Wire Cover, End		Appelez-nous	-
20	WP308685		Screw, No.10 X1/2   (Replaces: 4335117)			Immediately	$ 7.08
21	4336818		Side Trim (right)		Appelez-nous	-
21	4336819		Side Trim (left)		Appelez-nous	-
22	4336768		Corner Filler (left)		Appelez-nous	-
22	4336769		Corner Filler (right)		Appelez-nous	-
23	4331822		Screw No.8x5/8		Appelez-nous	-
24	4337386		Spring, Door (2)		Appelez-nous	-
25	4334794		Door Hinge (left)		Appelez-nous	-
25	4334793		Door Hinge (right)		Appelez-nous	-
26	4337332		Base, W/ Levelers (2)		Appelez-nous	-
27	4336631		Screw		Appelez-nous	-
28	4334800		Levelers, Leg (4)		Appelez-nous	-
29	4323884		Screw, No.10-32x17/32``		Appelez-nous	-
30	WPY707869		Grease Jar (2)   (Replaces: 4335916)				$ 64.50
31	4335900		Jar Lid (2)		Appelez-nous	-
32	4331381		Expansion Nut (8)		Appelez-nous	-
33	4337416		Hinge		Appelez-nous	-
34	WP681414		Screw, No.10-16 X 7/16   (Replaces: 4335248)			Immediately	$ 7.62
35	4337291		Circuit Board		Appelez-nous	-
36	4336562		Spacer, Circuit Board		Appelez-nous	-
37	4336918		Cover, Wire		Appelez-nous	-
38	4337073		Clamp, Capacitor		Appelez-nous	-
39	4337124		Capacitor		Appelez-nous	-
41	4323778		Screw, No.10-32 X 1/2		Appelez-nous	-
42	4337417		Bracket		Appelez-nous	-
43	4337418		Catch		Appelez-nous	-
44	4337419		Strike		Appelez-nous	-
45	4337420		Lining, Lower Door		Appelez-nous	-
46	4336330		Panel, Lower Door		Appelez-nous	-
47	4354338		Handle		Appelez-nous	-
48	4323997		Spacer, Handle		Appelez-nous	-
49	4336221		Frame, Lower Door		Appelez-nous	-
50	4334756		Element, Bake (240 Volt)		Appelez-nous	-
50	4334927		Bake Element (208 Volt (opt))		Appelez-nous	-
51	4333871		Washer		Appelez-nous	-
52	4331173		Vent Tube		Appelez-nous	-
53	4324482		Retainer, Lens		Appelez-nous	-
54	4324415		Light Lens		Appelez-nous	-
55	4324481		Gasket, Lens		Appelez-nous	-
56	W10856866		Holder, Light   (Replaces: 4323560)				$ 6.80
57	8009		Lamp   (Replaces: 4324154)			Immediately	$ 16.80
58	4336561		Oven Body		Appelez-nous	-
59	4326912		Clip, Thermostat Bulb		Appelez-nous	-
60	4337446		Frame, Front		Appelez-nous	-
61	4336990		Insulation, Top & Sides		Appelez-nous	-
62	4353609		Insulation, Bottom & Back		Appelez-nous	-
63	4324951		Cover Plate, Thermostat Bulb		Appelez-nous	-
64	4329206		Cover		Appelez-nous	-
65	4337170		Sensor		Appelez-nous	-
66	4335339		Screw No.6-20x3/8		Appelez-nous	-
67	4334809		Oven Rack (2)				$ 54.59
68	4396923		Pan, Broiler   (Replaces: 4336602)			Immediately	$ 54.64
69	4396923		Broiler, Grid Pan   (Replaces: 4334897)			Immediately	$ 54.64
70	4334357		Support, Broil Element		Appelez-nous	-
71	WP4334925		Element, Broil (208 Volt (opt))   (Replaces: 4354775)				$ 139.19
71	WP4334925		Broil Element (240 Volt)   (Replaces: 4354774)				$ 139.19
72	4337215		Extension, Trim		Appelez-nous	-
73	4337413		Shield, Wire		Appelez-nous	-
74	4354262		Insulation		Appelez-nous	-
