Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4336453 Griddle Appelez-nous -
A1 4336005 Cover Appelez-nous -
A2 4336006 Handle, (left/right) Appelez-nous -
A3 4336235 Screw, No. 6 X 1/4 Appelez-nous -
B1 4335942 Clamp Appelez-nous -
B10 4335944 Bracket Appelez-nous -
B11 4335993 Strap, Element Appelez-nous -
B12 4335941 Clamp, Elmnt. Appelez-nous -
B13 4335938 Cooktop (chrome) Appelez-nous -
B13 4336457 Cooktop (almond) Appelez-nous -
B14 WP3147132 Elmnt. - Large   (Replaces: 4335940) Special Order $ 286.33

B15 WP3147131 Elmnt. - Small   (Replaces: 4335939) Special Order $ 257.00

B2 4336026 Nut, Mount. (2) Appelez-nous -
B3 4330875 Pin, Terminal (4) Appelez-nous -
B4 4335910 Terminal Block Appelez-nous -
B5 4323399 Nut, Speed Appelez-nous -
B6 4336604 Pan-module Appelez-nous -
B7 4324647 Screw, No.8-32 X 3/8 Appelez-nous -
B8 4323479 Screw No.8-32 X 3/16 Appelez-nous -
B9 4330873 Insulator Appelez-nous -

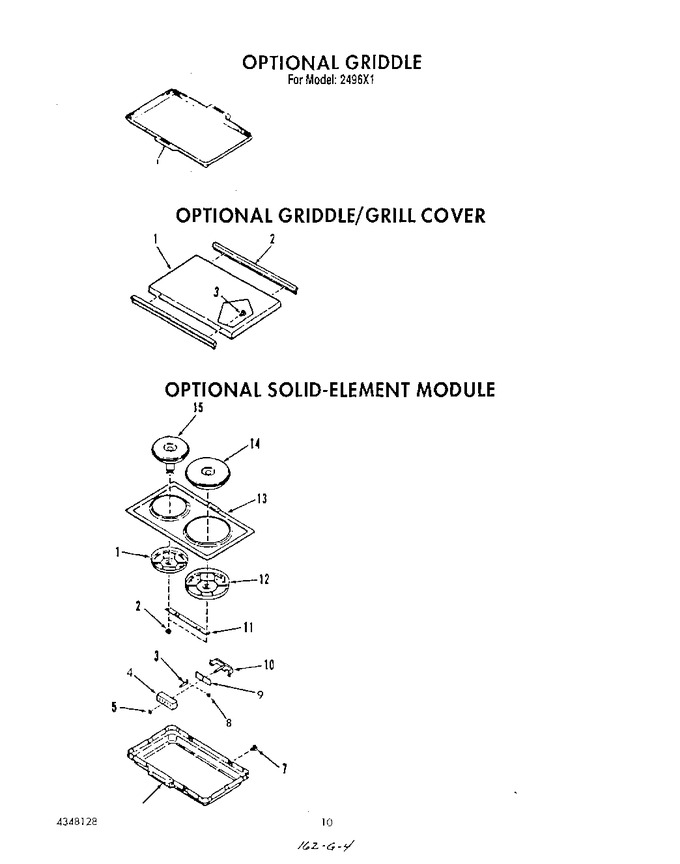

    View Diagram in Separate Window     Print Icon   Print Part List
