| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
570043 |
|
Bracket For Block |
- |
Appelez-nous
|
- |
|
|
|
| 2 |
570131 |
|
Thermal Limiter |
- |
Appelez-nous
|
- |
|
|
|
| 3 |
570132 |
|
Thermal Limiter |
- |
Appelez-nous
|
- |
|
|
|
| 4 |
570133 |
|
Element Block-small 240v |
- |
Appelez-nous
|
- |
|
|
|
| 5 |
570134 |
|
Element Block-large 240v |
- |
Appelez-nous
|
- |
|
|
|
| 6 |
570135 |
|
Element Block-small-208v |
- |
Appelez-nous
|
- |
|
|
|
| 7 |
570136 |
|
Element Block-large 208v |
- |
Appelez-nous
|
- |
|
|
|
| 8 |
570153 |
|
Wire |
- |
Appelez-nous
|
- |
|
|
|
| 9 |
570154 |
|
Wire |
- |
Appelez-nous
|
- |
|
|
|
| 10 |
570155 |
|
Wire |
- |
Appelez-nous
|
- |
|
|
|
| 11 |
570354 |
|
Glass |
- |
Appelez-nous
|
- |
|
|
|
| 12 |
WP74004005 |
|
Screw (Replaces: 580017) |
- |
|
|
$ 8.66 |
|
|
| 13 |
Y708572 |
 |
Contact Spade (Replaces: 580018) |
- |
|
Immediately |
$ 13.23 |
|
|
| 14 |
WPY708730 |
 |
Terminal Block (Replaces: 580020) |
- |
|
Immediately |
$ 102.01 |
|
|
| 15 |
708834 |
 |
Insulator (Replaces: 580024) |
- |
|
|
$ 15.74 |
|
|
| 16 |
WP488234 |
 |
Screw (Replaces: 580025) |
- |
|
|
$ 7.08 |
|
|
| 17 |
580026 |
|
Cable Clamp |
- |
Appelez-nous
|
- |
|
|
|
| 18 |
WP12990527 |
 |
Screw (Replaces: 580027) |
- |
|
Immediately |
$ 8.76 |
|
|
| 19 |
Y708862 |
 |
Nut (Replaces: 580151) |
- |
|
|
$ 15.25 |
|
|
| 20 |
580251 |
|
Cartridge Pan |
- |
Appelez-nous
|
- |
|
|
|
| 21 |
580270 |
|
Insulation Sleeve |
- |
Appelez-nous
|
- |
|
|
|
| 22 |
580271 |
|
Screw |
- |
Appelez-nous
|
- |
|
|
|
| 23 |
580284 |
|
Bracket For Thermal Limiter |
- |
Appelez-nous
|
- |
|
|
|
| 24 |
580285 |
|
Nut For Element |
- |
Appelez-nous
|
- |
|
|
|
| 25 |
580286 |
|
Spacer For Element |
- |
Appelez-nous
|
- |
|
|
|
| 26 |
580296 |
|
Cartridge Pan 208v |
- |
Appelez-nous
|
- |
|
|
|
| 27 |
580302 |
|
Rim For Glass |
- |
Appelez-nous
|
- |
|
|
|

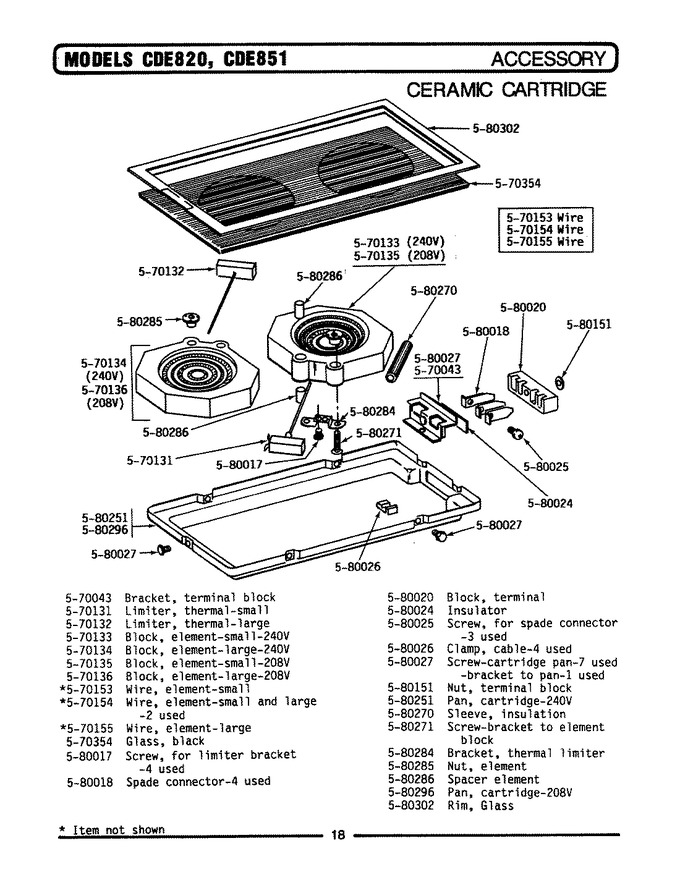

View Diagram in Separate Window
