| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
580000 |
|
Wall Cap - 6`` |
- |
Appelez-nous
|
- |
|
|
|
| 2 |
COMM PART |
|
Wall Cap - 5`` (Replaces: 580001) |
- |
Appelez-nous
|
- |
|
|
|
| 3 |
580002 |
|
Wall Cap - 3 1/4`` X 10`` |
- |
Appelez-nous
|
- |
|
|
|
| 4 |
580003 |
|
Transition 5`` To 6`` |
- |
Appelez-nous
|
- |
|
|
|
| 5 |
580004 |
|
Transition 6`` To 3 1/4`` X 1 |
- |
Appelez-nous
|
- |
|
|
|
| 6 |
580005 |
|
Elbow 6`` To 3 1/4`` X 10`` |
- |
Appelez-nous
|
- |
|
|
|
| 7 |
580006 |
|
Elbow 5`` To 3 1/4`` X 10`` |
- |
Appelez-nous
|
- |
|
|
|
| 8 |
580007 |
|
Roof Jack |
- |
Appelez-nous
|
- |
|
|
|
| 9 |
00425458 |
 |
Transition 5`` To 3 1/4`` X 1 (Replaces: 580009) |
- |
|
Immediately |
$ 110.25 |
|
|
| 10 |
580272 |
|
Wall Mount - 6`` |
- |
Appelez-nous
|
- |
|
|
|
| 11 |
580273 |
|
Damper With Spring |
- |
Appelez-nous
|
- |
|
|
|
| 12 |
580275 |
|
Wall Mount - 5`` |
- |
Appelez-nous
|
- |
|
|
|
| 13 |
580276 |
|
Screw-cap To Wall Mount |
- |
Appelez-nous
|
- |
|
|
|
| 14 |
COMM PART |
|
Spring (Replaces: 580283) |
- |
Appelez-nous
|
- |
|
|
|
| 15 |
580339 |
|
Cover For Wall Cap |
- |
Appelez-nous
|
- |
|
|
|
| 16 |
580354 |
|
Duct Pipe - 6`` X 24`` |
- |
Appelez-nous
|
- |
|
|
|
| 17 |
580355 |
|
Duct Pipe - 5`` X 24`` |
- |
Appelez-nous
|
- |
|
|
|
| 18 |
580356 |
|
Elbow - 6`` 90 Degree |
- |
Appelez-nous
|
- |
|
|
|
| 19 |
580357 |
|
Elbow - 5`` 90 Degree |
- |
Appelez-nous
|
- |
|
|
|
| 20 |
580358 |
|
Duct Pipe - 3 1/4 X 1o-24 |
- |
Appelez-nous
|
- |
|
|
|
| 21 |
580359 |
|
Elbow (3 1/4 X 10-90 Degree) |
- |
Appelez-nous
|
- |
|
|
|
| 22 |
580360 |
|
Flat Elbow - 3 1/4 X 10 |
- |
Appelez-nous
|
- |
|
|
|
| 23 |
580361 |
|
Elbow - 6`` 45 Degree |
- |
Appelez-nous
|
- |
|
|
|
| 24 |
580362 |
|
Elbow - 5`` 45 Degree |
- |
Appelez-nous
|
- |
|
|
|

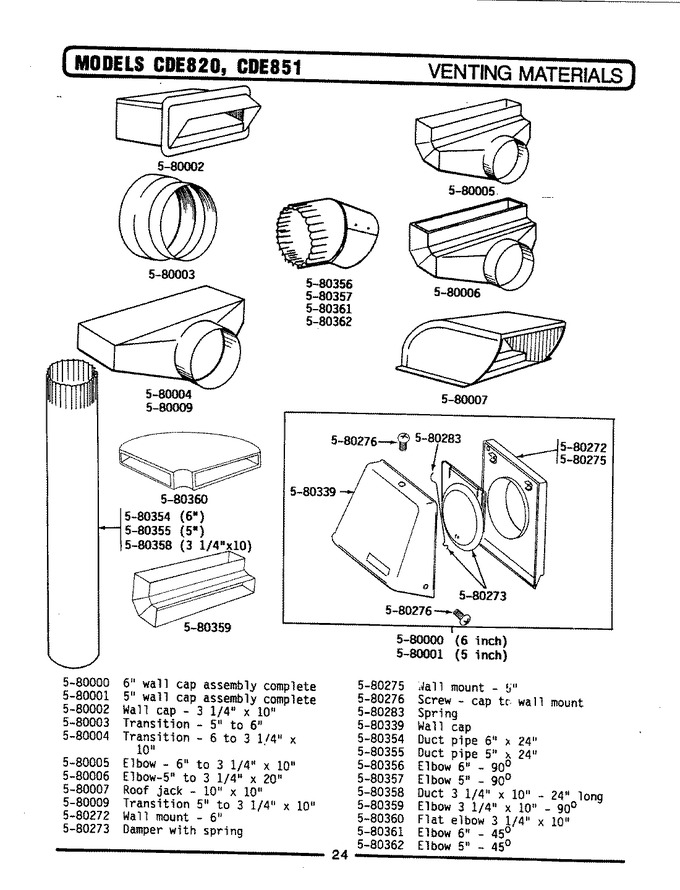

View Diagram in Separate Window
