SELECT A DIAGRAM

01 - Air Duct/blower Components


02 - Backsplash - Accessory


03 - Backsplash/deluxe - Accessory


04 - Body/cooling Fan Assembly


05 - Ceramic Cartridge-accessory


06 - Control Panel


07 - Conventional Cartridge - Accessory


08 - Door Assembly-lower


09 - Front, Door Lock & Hinges


10 - Grill Cover, Griddle & Storage Tray


11 - Oven Cavity & Components


12 - Oven Door Assembly


13 - Rotis-kebab Accessory


14 - Side Panels - Accessory


15 - Solid Element Cartridge-accessory


16 - Top Assembly


17 - Venting Materials

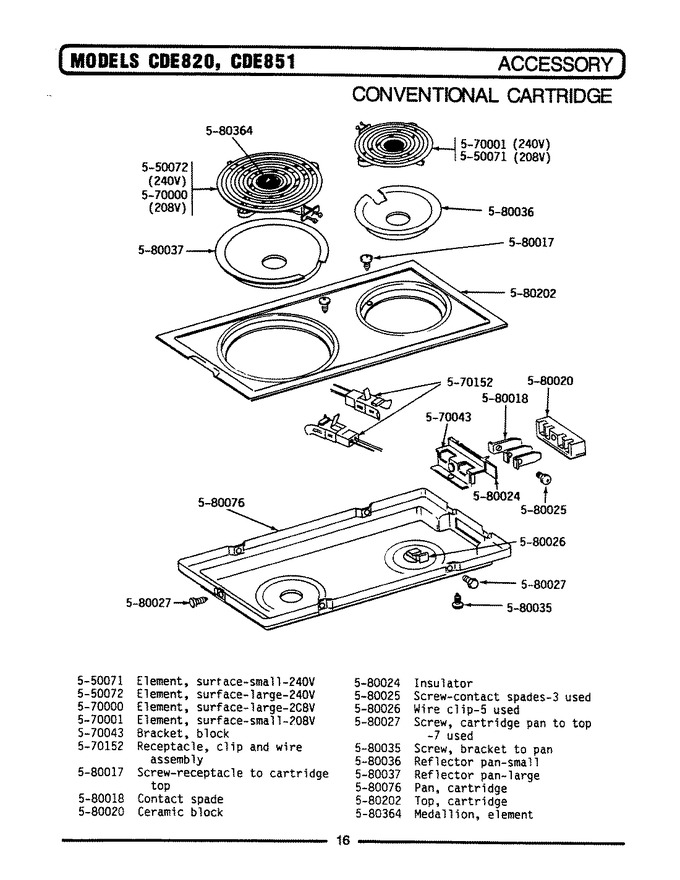

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPY04100165		Surface Element-small   (Replaces: 550071)	-		Immediately	$ 66.41
2	WPY04100166		Surface Element-large   (Replaces: 550072)	-		Immediately	$ 52.46
3	570000		Heating Element-large-208v	-	Appelez-nous	-
4	570001		Heating Element-small-208v	-	Appelez-nous	-
5	570043		Bracket For Block	-	Appelez-nous	-
6	12001676		Receptacle, Clip, Wire Assm   (Replaces: 570152)	-		Immediately	$ 31.61
7	WP74004005		Screw   (Replaces: 580017)	-			$ 8.66
8	Y708572		Contact Spade   (Replaces: 580018)	-		Immediately	$ 13.23
9	WPY708730		Terminal Block   (Replaces: 580020)	-		Immediately	$ 102.01
10	708834		Insulator   (Replaces: 580024)	-			$ 15.74
11	WP488234		Screw   (Replaces: 580025)	-			$ 7.08
12	580026		Cable Clamp	-	Appelez-nous	-
13	WP12990527		Screw   (Replaces: 580027)	-		Immediately	$ 8.76
14	580035		Screw	-	Appelez-nous	-
15	715877		Reflector Pan-small   (Replaces: 580036)	-		Immediately	$ 90.39
16	715878		Reflector Pan-large   (Replaces: 580037)	-		Immediately	$ 24.70
17	580076		Cartridge Pan	-	Appelez-nous	-
18	WP2002F208-50		Cartridge Top   (Replaces: 580202)	-			$ 219.73
19	580364		Medallion	-	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
