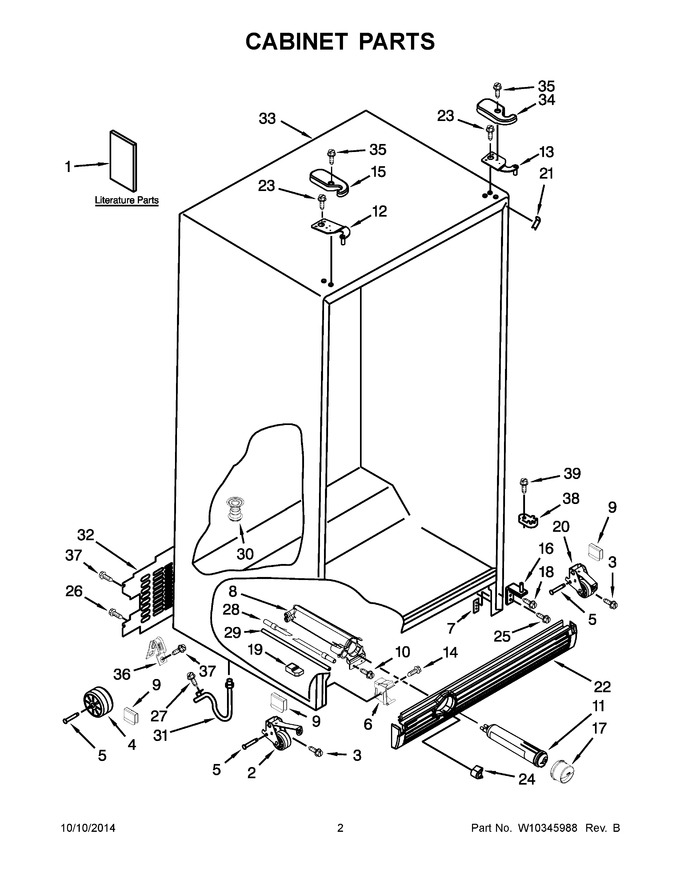

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10213155		Use And Care Guide		Appelez-nous	-
2	WPW10304660		Roller, Front (left)   (Replaces: W10304660)			Immediately	$ 66.51
3	WP489427		Screw   (Replaces: 489427)				$ 7.06
4	WPW10475495		Roller   (Replaces: 2150304)			Immediately	$ 28.85
5	W11594405		Axle, Roller   (Replaces: 2262072)			Immediately	$ 17.21
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.30
7	WP2304249		Plate, Screw   (Replaces: 2304249)				$ 13.45
8	WPW10121138		Housing, Water Filter   (Replaces: W10121138)			Immediately	$ 103.15
9	WP2174706		Clip, Roller   (Replaces: 2174706)				$ 10.38
10	WP489500		Screw   (Replaces: 489500)				$ 7.35
11	EDR3RXD1B		Filter, Water   (Replaces: 4396841)			Immediately	$ 49.99
12	W10287685		Assembly, Top Hinge (freezer)				$ 63.39
13	W10287684		Assembly, Top Hinge (refrigerator)				$ 46.69
14	WP489128		Screw   (Replaces: 488500)				$ 10.26
15	WP2203407B		Cover, Hinge (freezer) (black)   (Replaces: 2203407B)				$ 18.45
16	W10251408		Hinge, Bottom				$ 59.74
17	WP2260518B		Cap, Water Filter (black)   (Replaces: 2260502B)			Immediately	$ 30.56
18	WP489497		Screw   (Replaces: 3400113)			Immediately	$ 26.18
19	2260519		Block, Housing Support		Appelez-nous	-
20	WPW10304659		Roller, Front (right)   (Replaces: W10304659)			Immediately	$ 66.51
21	W11252732		Filler, Corner (black)   (Replaces: W10283960)				$ 11.76
22	W10283953		Grille (black)				$ 57.40
23	WP489497		Screw   (Replaces: 489497)			Immediately	$ 26.18
24	WP2260503B		Button, Water Filter (black)   (Replaces: 2260503B)				$ 68.78
25	W10856122		Screw   (Replaces: 3400103)				$ 7.44
26	WP488488		Screw   (Replaces: 489290)				$ 7.67
27	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.54
28	W10274362		Tube, Filter Inlet		Appelez-nous	-
29	WPW10350006		Tube, Filter Outlet   (Replaces: 2255012)				$ 109.19
30	W11566763		Fitting, Drain   (Replaces: 2304888)			Immediately	$ 48.11
31	W11512417		Extension, Drain Fitting   (Replaces: W10153550)				$ 32.88
32	WP2188756		Cover, Unit   (Replaces: 2188734)				$ 133.88
33	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
34	WP2203408B		Cover, Hinge (refrigerator) (black)   (Replaces: 2203408B)				$ 17.60
35	WP8281227		Screw   (Replaces: 8281227)				$ 9.86
36	549193		Clamp, Power Cord				$ 12.65
37	WPW10141645		Screw   (Replaces: 489084)				$ 7.25
38	WPW10329686		Closer, Door   (Replaces: 2155311)			Immediately	$ 5.31
39	WP489483		Screw   (Replaces: 489483)				$ 10.27
1A	W10158908		Service And Wiring Sheet		Appelez-nous	-
1B	W10130282		Energy Guide		Appelez-nous	-
1C	2261037		Door Removal Instruction Sheet		Appelez-nous	-
1D	628370		Icemaker Service Sheet		Appelez-nous	-
