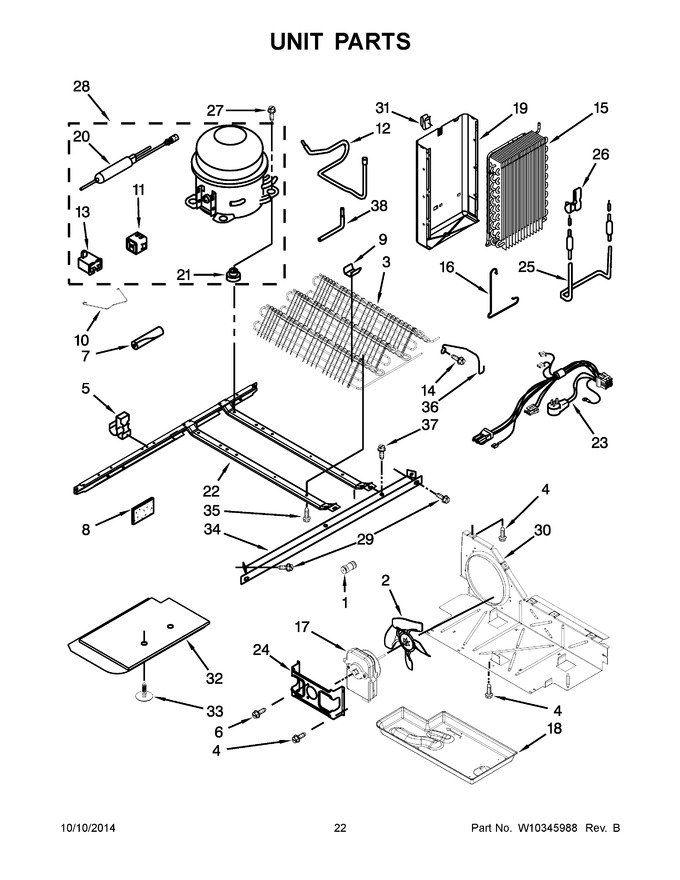

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10334458		Connector, Water Tube   (Replaces: W10271540)				$ 20.40
2	W11458267		Blade, Fan   (Replaces: 2225834)			Immediately	$ 22.67
3	2324712		Condenser   (Replaces: W10222349)				$ 291.11
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.54
5	2208280		Clip, Wire And Water Tube		Appelez-nous	-
6	WP8533993		Screw   (Replaces: 8533993)				$ 10.09
7	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 19.19
8	W11553819		Insulation, Sound   (Replaces: 2215468)			Immediately	$ 13.29
9	W10683556		Clip, Condenser   (Replaces: 2311725)				$ 17.44
10	2212996		Strap, Bale   (Replaces: 2255113)				$ 11.45
11	WP2188831		Device, Start   (Replaces: 2188831)				$ 167.72
12	2220642		Tube, Suction				$ 209.40
13	WP65889-4		Capacitor   (Replaces: 2252799)			Immediately	$ 62.10
14	WP489478		Screw   (Replaces: 489478)				$ 7.36
15	WP2188822		Evaporator   (Replaces: 2188822)			Immediately	$ 321.16
16	2161324		Clip, Defrost Heater		Appelez-nous	-
17	W10124096		Motor, Condenser   (Replaces: W10204250)			Immediately	$ 146.83
18	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 142.34
19	WPW10194474		Assembly, Heat Shield And Drain Pan   (Replaces: W10194474)				$ 112.96
20	WPW10143759		Drier   (Replaces: W10177049)			Immediately	$ 27.70
21	W11661108		Grommet   (Replaces: 2183042)				$ 13.69
22	2304903		Frame, Unit Mounting				$ 220.21
23	W10281341		Harness, Unit				$ 240.86
24	WP2181929		Bracket, Fan Motor   (Replaces: 2181929)				$ 11.64
25	WP2323197		Heater, Defrost   (Replaces: 2188174)			Immediately	$ 110.93
26	2161324		Clip, Defrost Heater		Appelez-nous	-
27	876811		Screw   (Replaces: 489373)				$ 7.01
28	W10355489		Compressor (also Order 876765 Tube Kit)   (Replaces: W10144769)				$ 610.65
29	489340		Bolt		Appelez-nous	-
30	W10332806		Baffle, Air				$ 102.82
31	2155547		Clip, Heat Shield		Appelez-nous	-
32	W11115203		Cover, Unit (bottom)   (Replaces: 2304898)				$ 489.43
33	489396		Clip				$ 10.13
34	WPW10196323		Rail, Unit Mounting   (Replaces: W10196323)				$ 112.40
35	W11544659		Screw   (Replaces: 8281232)				$ 12.92
36	2260516		Guard, Condenser Fan		Appelez-nous	-
37	WP489427		Screw   (Replaces: 489427)				$ 7.06
38	2325479		Tube, Process		Appelez-nous	-
NI	978029		Valve, Access				$ 93.85
NI	978030		Valve, Access				$ 123.53
NI	876764		Valve, Access			Immediately	$ 86.33
NI	N/P		Refrigerant Charge 5.0 Oz. (r-134a)		Appelez-nous	-
NI	WP978025		Valve, Access   (Replaces: 978025)			Immediately	$ 99.46
NI	978026		Valve, Access			Immediately	$ 121.04
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 16.79
NI	978028		Valve, Access		Appelez-nous	-
