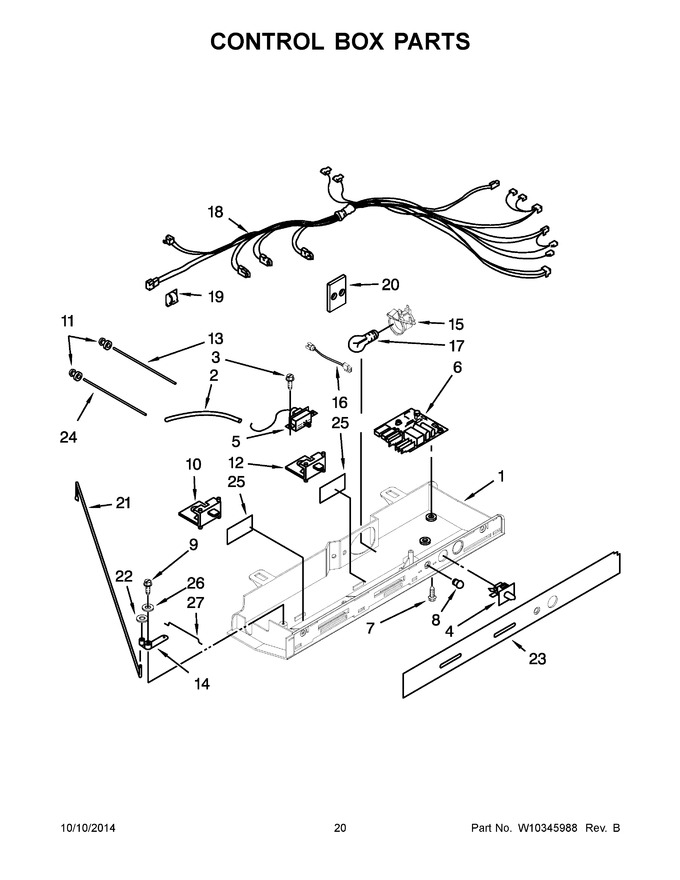

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2311721 | Box, Control |
|
- | |||||
| 2 | WP2196003 | Tube, Thermostat Barrier (Replaces: 2196001) |
|
$ 8.35 | |||||
| 3 | 2006254 | Screw (Replaces: 489214) |
|
$ 13.79 | |||||
| 4 | WP2149705 | Switch, Plunger (Replaces: 2149705) |
|
Immediately | $ 45.66 | ||||
| 5 | WP2315562 | Thermostat (Replaces: 2315562) |
|
Immediately | $ 108.43 | ||||
| 6 | WPW10366605 | Control, Adaptive Defrost (Replaces: W10135899) |
|
Immediately | $ 312.83 | ||||
| 7 | 489392 | Screw (Replaces: 489398) |
|
$ 14.02 | |||||
| 8 | 2200096 | Lens, Light |
|
$ 64.10 | |||||
| 9 | 627068 | Screw |
|
$ 12.73 | |||||
| 10 | 2181741 | Slide, Air Control |
|
$ 95.01 | |||||
| 11 | 2172906 | Grommet, Light Bar |
|
- | |||||
| 12 | 2161466 | Slide, Thermostat |
|
$ 22.28 | |||||
| 13 | 2179920 | Fiber, Light Optic |
|
$ 37.08 | |||||
| 14 | 2161306 | Arm, Pivot |
|
$ 9.65 | |||||
| 15 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 115.67 | ||||
| 16 | W10853646 | Assembly, Led (Replaces: 2213462) |
|
$ 130.80 | |||||
| 17 | 8009 | Bulb, Light (Replaces: 527949) |
|
Immediately | $ 18.67 | ||||
| 18 | 2311632 | Assembly, Control Box Wire |
|
$ 174.26 | |||||
| 19 | WP1115374 | Clip, Wire (Replaces: 1115374) |
|
$ 8.14 | |||||
| 20 | 2172931 | Shield, Control Box Heat |
|
$ 73.90 | |||||
| 21 | 2161308 | Rod, Connecting (long) |
|
$ 180.72 | |||||
| 22 | 489391 | Fastener, Push-on |
|
$ 7.52 | |||||
| 23 | W10242637 | Escutcheon, Control Box |
|
$ 39.48 | |||||
| 24 | 2179921 | Fiber, Light Optic |
|
- | |||||
| 25 | 2175513 | Lens, Window Light |
|
- | |||||
| 26 | 489203 | Washer, Spring |
|
- | |||||
| 27 | 2161307 | Rod, Connecting (short) |
|
- |
