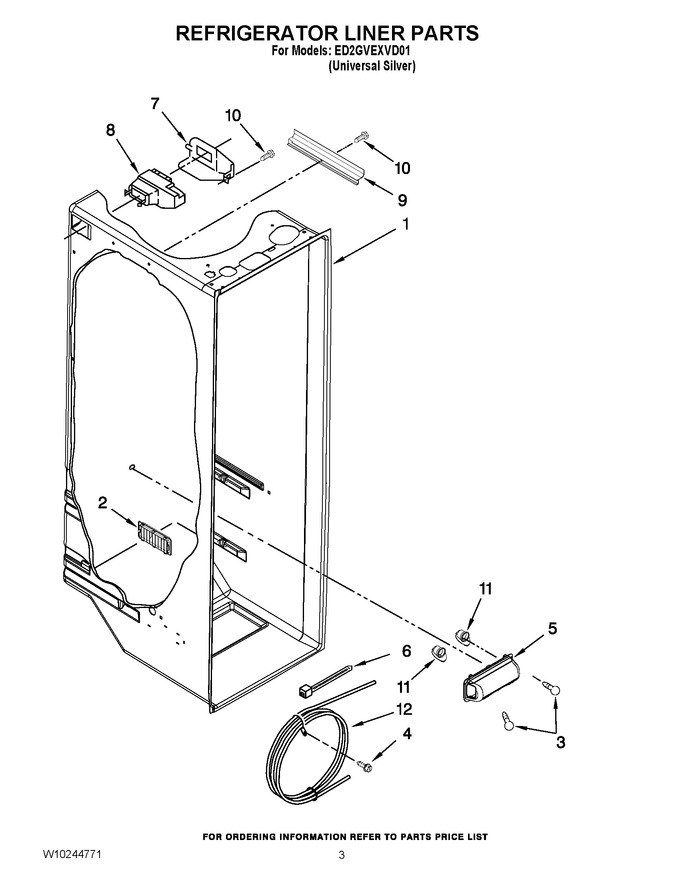

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	2257741		Louver		Appelez-nous	-
3	W11679940		Light Bulb   (Replaces: W10311505)			Immediately	$ 11.30
4	488280		Screw		Appelez-nous	-
5	W11239891		Light Lens   (Replaces: W10166019)				$ 96.69
6	WPW10339879		Strap Dual Crisper   (Replaces: 2263990)				$ 7.90
7	2152019		Air Diffuser Cover				$ 86.03
8	WPW10151374		Air Diffuser Assembly   (Replaces: W10151374)			Immediately	$ 99.78
9	W10252495		Cover, Conduit		Appelez-nous	-
10	W10759522		Screw   (Replaces: 486298)				$ 7.75
11	4387478		Socket   (Replaces: 2162085)			Immediately	$ 110.16
12	WPW10276792		Reservoir   (Replaces: W10276792)				$ 137.57
