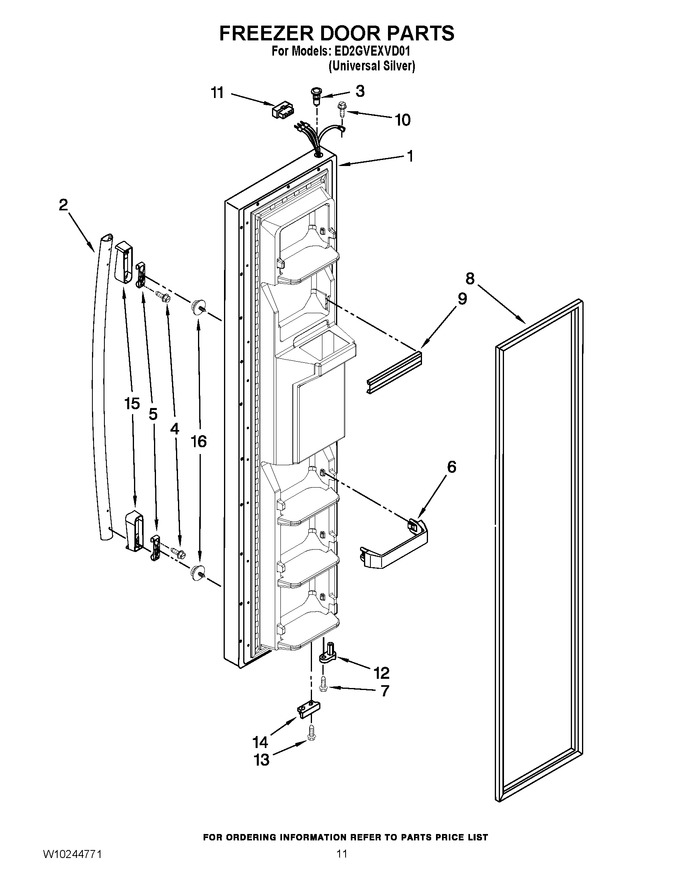

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10203205 | Freezer Door (includes Item 8 And Dispenser Front Parts) (universal Silver) |
|
- | |||||
| 2 | WPW10127762 | Handle, Center (black) (Replaces: W10127766) |
|
$ 190.65 | |||||
| 3 | WP2182181 | Thimble-top (Replaces: 2182181) |
|
$ 7.76 | |||||
| 4 | WP8533988 | Screw (Replaces: W10155511) |
|
Immediately | $ 7.95 | ||||
| 5 | WP2255411 | Clip (Replaces: 2255411) |
|
$ 34.81 | |||||
| 6 | WP2309717 | Trim, Door (4) (Replaces: 2309717) |
|
$ 55.85 | |||||
| 7 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.82 | |||||
| 8 | 2159080 | Door Gasket, Magnetic (Replaces: 2309654) |
|
$ 310.39 | |||||
| 9 | WPW10307490 | Trim, Door Shelf (Replaces: W10307489) |
|
Immediately | $ 23.11 | ||||
| 10 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.88 | |||||
| 11 | WP2154473 | Connector (Replaces: 2154473) |
|
$ 23.65 | |||||
| 12 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182179) |
|
Immediately | $ 6.39 | ||||
| 13 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.87 | |||||
| 14 | W10185567 | Bracket, Door Stop |
|
- | |||||
| 15 | W10127770 | Endcap |
|
- | |||||
| 16 | WPW10288153 | Screw (Replaces: W10288153) |
|
Immediately | $ 8.69 |
