SELECT A DIAGRAM
New Model Search:

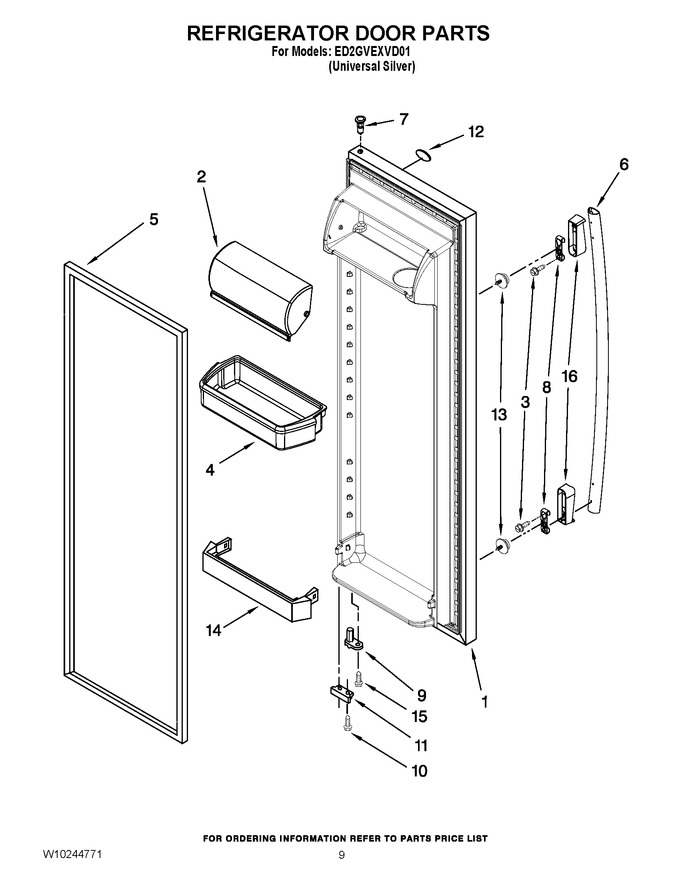

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2309622US | Refrigerator Door (includes Item 5) (universal Silver) |
|
- | |||||
| 2 | WP2256101 | Door, Compartment (Replaces: 2256101) |
|
Immediately | $ 85.16 | ||||
| 3 | WP8533988 | Screw (Replaces: W10155511) |
|
Immediately | $ 7.95 | ||||
| 4 | WP2187172 | Door Bin (3) (Replaces: 2187172) |
|
Immediately | $ 45.09 | ||||
| 5 | 2159081 | Door Gasket, Magnetic (Replaces: 2309653) |
|
$ 319.60 | |||||
| 6 | WPW10127762 | Handle (Replaces: W10127766) |
|
$ 190.65 | |||||
| 7 | WP2182181 | Thimble-top (Replaces: 2308091) |
|
$ 7.76 | |||||
| 8 | WP2255411 | Clip (Replaces: 2255411) |
|
$ 34.81 | |||||
| 9 | WP2182179 | Door Closer (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 10 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.87 | |||||
| 11 | W10219812 | Bracket, Door Stop |
|
$ 24.48 | |||||
| 12 | WP2213265 | Nameplate (Replaces: 2255121) |
|
Immediately | $ 88.74 | ||||
| 13 | WPW10288153 | Screw (Replaces: W10288153) |
|
Immediately | $ 8.69 | ||||
| 14 | WP2309941 | Trivet (Replaces: 2309941) |
|
Immediately | $ 76.32 | ||||
| 15 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.82 | |||||
| 16 | W10127770 | Endcap |
|
- |
