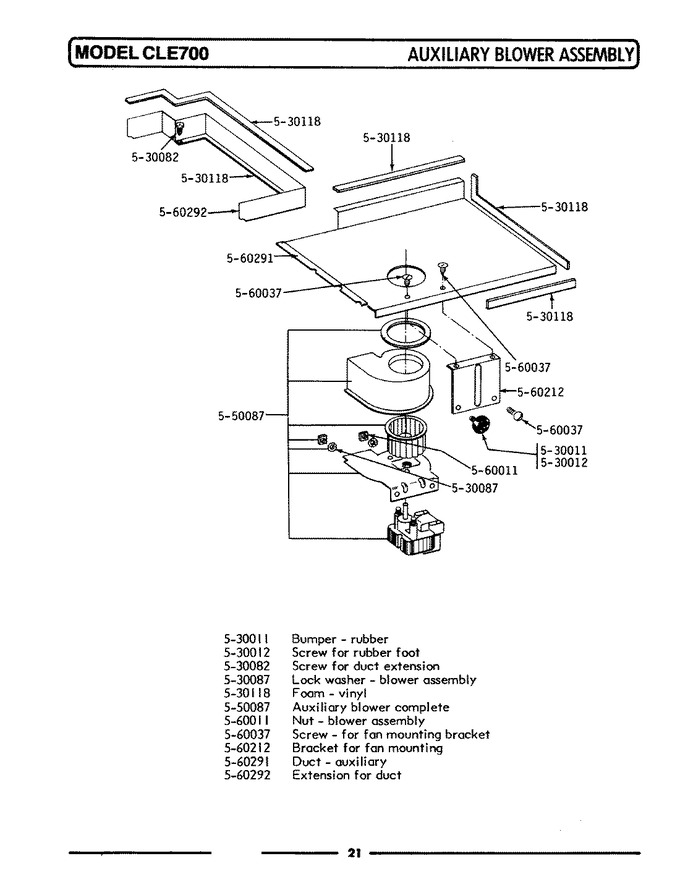

01 - Auxiliary Blower Assembly


02 - Base Assembly & Components


03 - Control Panel


04 - Door Assembly


05 - Drawer Assembly


06 - Front View


07 - Latch Assembly


08 - Microwave Base Assembly


09 - Microwave Blower & Exhaust Components


10 - Microwave Cabinet Assembly


11 - Microwave Door


12 - Microwave Oven Cavity


13 - Microwave Turn Tray


14 - Microwave Turntable


15 - Microwave-rear View


16 - Oven Assembly


17 - Rear View


18 - Top Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	530011		Rubber Foot		Appelez-nous	-
2	WP250830		Screw   (Replaces: 530012)				$ 7.90
3	530082		Screw, No.6 X 3/8 Inch		Appelez-nous	-
4	530087		Lock Washer		Appelez-nous	-
5	530118		Foam Insulation-exhaust Duc		Appelez-nous	-
6	550087		Blower Assembly-auxiliary		Appelez-nous	-
7	M0282009		Nut   (Replaces: 560011)				$ 12.66
8	WP7101P126-60		Screw   (Replaces: 560037)			Immediately	$ 7.52
9	560212		Bracket For Auxillary Blowe		Appelez-nous	-
10	560291		Duct-auxiliary		Appelez-nous	-
11	560292		Extension For Duct		Appelez-nous	-
