| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
520039L |
|
Inner Glass Retainer-almond |
|
Appelez-nous
|
- |
|
|
|
| 2 |
520040 |
|
Door Arm |
|
Appelez-nous
|
- |
|
|
|
| 3 |
520056 |
|
Door Hinge Bracket-upper |
|
Appelez-nous
|
- |
|
|
|
| 4 |
520057 |
|
Door Hinge Bracket-lower |
|
Appelez-nous
|
- |
|
|
|
| 5 |
520061 |
|
Inner Door With Pins |
|
Appelez-nous
|
- |
|
|
|
| 6 |
530000 |
|
Door Screen Retainer |
|
Appelez-nous
|
- |
|
|
|
| 7 |
530002 |
|
Outer Door Glass |
|
Appelez-nous
|
- |
|
|
|
| 8 |
530003 |
|
Door Frame |
|
Appelez-nous
|
- |
|
|
|
| 9 |
530005 |
|
Door Handle |
|
Appelez-nous
|
- |
|
|
|
| 10 |
530007 |
|
Door Choke Frame |
|
Appelez-nous
|
- |
|
|
|
| 11 |
530010 |
|
Clip For Door Frame |
|
Appelez-nous
|
- |
|
|
|
| 12 |
530013 |
|
Clip For Door Arm |
|
Appelez-nous
|
- |
|
|
|
| 13 |
530014 |
|
Gasket For Inner Glass |
|
Appelez-nous
|
- |
|
|
|
| 14 |
530015 |
|
Gasket For Outer Glass |
|
Appelez-nous
|
- |
|
|
|
| 15 |
530019 |
|
Door Latch-upper |
|
Appelez-nous
|
- |
|
|
|
| 16 |
530021 |
|
Pivot Pin For Door Handle |
|
Appelez-nous
|
- |
|
|
|
| 17 |
530026 |
|
Door Seal Plate |
|
Appelez-nous
|
- |
|
|
|
| 18 |
530027L |
|
Door Seal Latch-almond |
|
Appelez-nous
|
- |
|
|
|
| 19 |
530037 |
|
Bushing For Door Arm |
|
Appelez-nous
|
- |
|
|
|
| 20 |
530039 |
|
Pivot Bushing For Door Latc |
|
Appelez-nous
|
- |
|
|
|
| 21 |
530041 |
|
Bushing For Door Latch |
|
Appelez-nous
|
- |
|
|
|
| 22 |
530042 |
|
Bushing For Door Arm |
|
Appelez-nous
|
- |
|
|
|
| 23 |
530046 |
|
Inner Door Glass |
|
Appelez-nous
|
- |
|
|
|
| 24 |
530048 |
|
Gasket For Outer Glass |
|
Appelez-nous
|
- |
|
|
|
| 25 |
530049 |
|
Guide For Door Latch |
|
Appelez-nous
|
- |
|
|
|
| 26 |
530051 |
|
Pivot For Door Latch |
|
Appelez-nous
|
- |
|
|
|
| 27 |
530052 |
|
Door Latch-lower |
|
Appelez-nous
|
- |
|
|
|
| 28 |
530058 |
|
Nut, No.10 - 32 |
|
Appelez-nous
|
- |
|
|
|
| 29 |
530061 |
|
Spring For Door Latch-upper |
|
Appelez-nous
|
- |
|
|
|
| 30 |
530069 |
|
Screw, No.8-32 X 3/8 Inch |
|
Appelez-nous
|
- |
|
|
|
| 31 |
530070 |
|
Screw, No.6-32 X 3/8 Inch |
|
Appelez-nous
|
- |
|
|
|
| 32 |
530071 |
|
Washer-door Hinge Bracket |
|
Appelez-nous
|
- |
|
|
|
| 33 |
530078 |
|
Nut, No.8 - 32 |
|
Appelez-nous
|
- |
|
|
|
| 34 |
530081 |
|
Spring For Door Latch-lower |
|
Appelez-nous
|
- |
|
|
|
| 35 |
530096 |
|
Linkage For Door Latch-uppe |
|
Appelez-nous
|
- |
|
|
|
| 36 |
530097 |
|
Linkage For Door Latch-lowe |
|
Appelez-nous
|
- |
|
|
|
| 37 |
530101 |
|
Door Screen |
|
Appelez-nous
|
- |
|
|
|

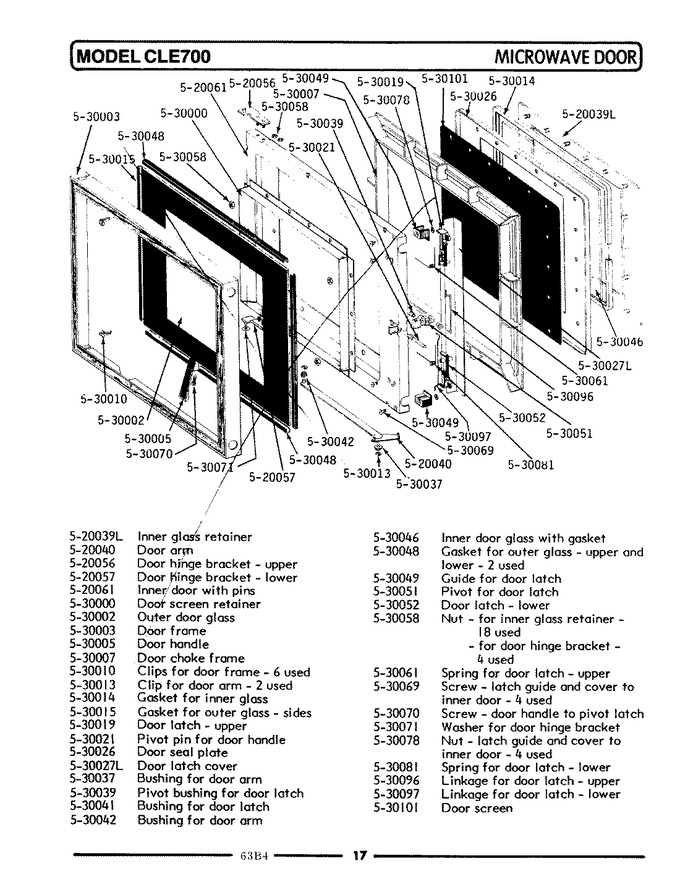

View Diagram in Separate Window
Print Part List
