| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
Y520004 |
|
Touch Pad Switch W/bracket |
|
Appelez-nous
|
- |
|
|
|
| 2 |
520052 |
|
Microprocessor Board Assm |
|
Appelez-nous
|
- |
|
|
|
| 3 |
530050 |
|
Gasket Insert F/panel-right |
|
Appelez-nous
|
- |
|
|
|
| 4 |
530067 |
|
Screw, No.5-40 X 1/4 Inch |
|
Appelez-nous
|
- |
|
|
|
| 5 |
530114 |
|
Fiber Washer |
|
Appelez-nous
|
- |
|
|
|
| 6 |
550028 |
|
Control Panel For Oven |
|
Appelez-nous
|
- |
|
|
|
| 7 |
550063 |
|
Control Switch-heat Element |
|
Appelez-nous
|
- |
|
|
|
| 8 |
550064 |
|
Indicator Light |
|
Appelez-nous
|
- |
|
|
|
| 9 |
550065 |
|
Indicator Light |
|
Appelez-nous
|
- |
|
|
|
| 10 |
550066 |
|
Switch For Light |
|
Appelez-nous
|
- |
|
|
|
| 11 |
550085 |
|
Clock For Cooking Hours |
|
Appelez-nous
|
- |
|
|
|
| 12 |
550086 |
|
Clock For Delay Cooking |
|
Appelez-nous
|
- |
|
|
|
| 13 |
550130 |
|
Resistor |
|
Appelez-nous
|
- |
|
|
|
| 14 |
550142 |
|
Control Switch-oven Selecto |
|
Appelez-nous
|
- |
|
|
|
| 15 |
550148 |
|
Control Panel For Microwave |
|
Appelez-nous
|
- |
|
|
|
| 16 |
550180 |
|
Control Switch-oven Temp |
|
Appelez-nous
|
- |
|
|
|
| 17 |
550187 |
|
Knob For Surface Element |
|
Appelez-nous
|
- |
|
|
|
| 18 |
550188 |
|
Knob For Oven Temperature |
|
Appelez-nous
|
- |
|
|
|
| 19 |
550189 |
|
Knob For Oven Selector |
|
Appelez-nous
|
- |
|
|
|
| 20 |
560044 |
|
Screw |
|
Appelez-nous
|
- |
|
|
|
| 21 |
560208 |
|
Bracket For Control Switch |
|
Appelez-nous
|
- |
|
|
|
| 22 |
560209 |
|
Time Indicator |
|
Appelez-nous
|
- |
|
|
|
| 23 |
560210 |
|
Extension For Push Button |
|
Appelez-nous
|
- |
|
|
|
| 24 |
560286 |
|
Bracket For Control Panel |
|
Appelez-nous
|
- |
|
|
|
| 25 |
560287 |
|
Push Button |
|
Appelez-nous
|
- |
|
|
|
| 26 |
560288 |
|
Push Button |
|
Appelez-nous
|
- |
|
|
|
| 27 |
560289 |
|
Trim For Control Panel |
|
Appelez-nous
|
- |
|
|
|
| 28 |
560348 |
|
Knob For Clock |
|
Appelez-nous
|
- |
|
|
|
| 29 |
560460 |
|
Wire Connector |
|
Appelez-nous
|
- |
|
|
|

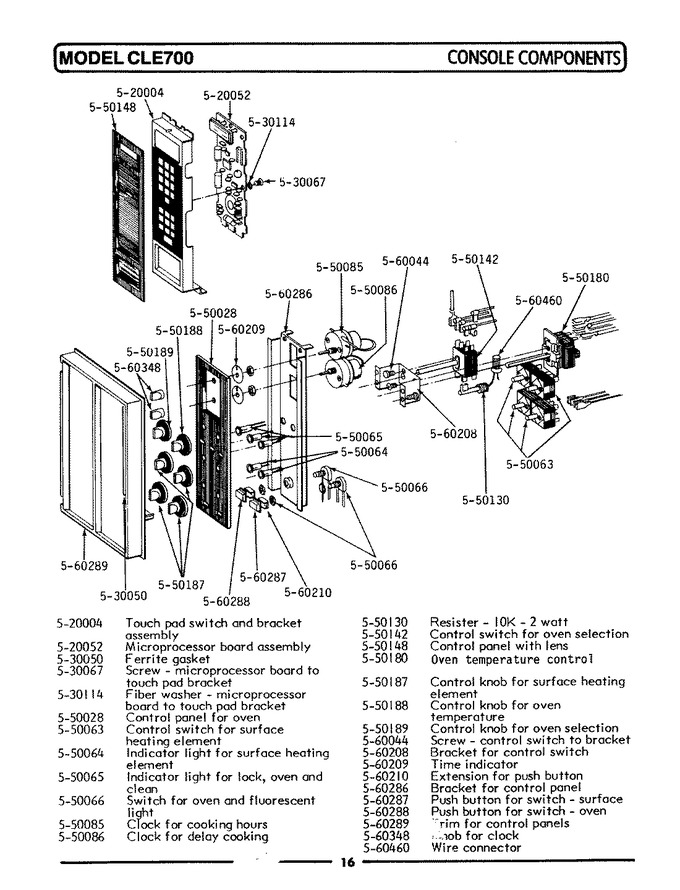

View Diagram in Separate Window
