Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 520000 Built-in Installation Kit 00 Appelez-nous -
2 530118 Foam Insulation-exhaust Duc 00 Appelez-nous -
3 530135 Trim - Top/bottom 00 Appelez-nous -
4 530136 Trim - Side 00 Appelez-nous -
5 530137 Vent - Top 00 Appelez-nous -
6 530138 Vent - Rear 00 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

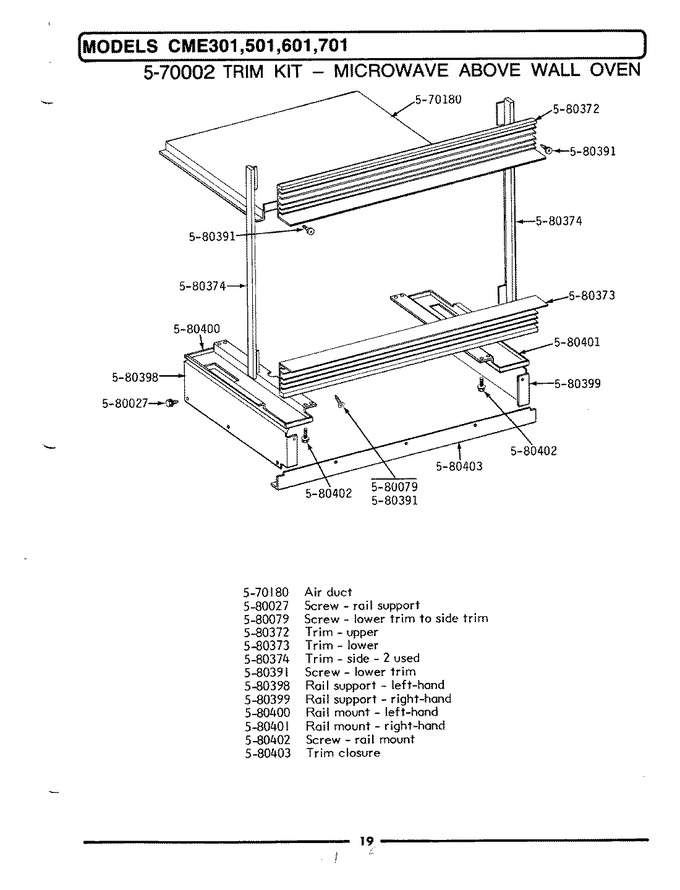

Diagram for CME301
