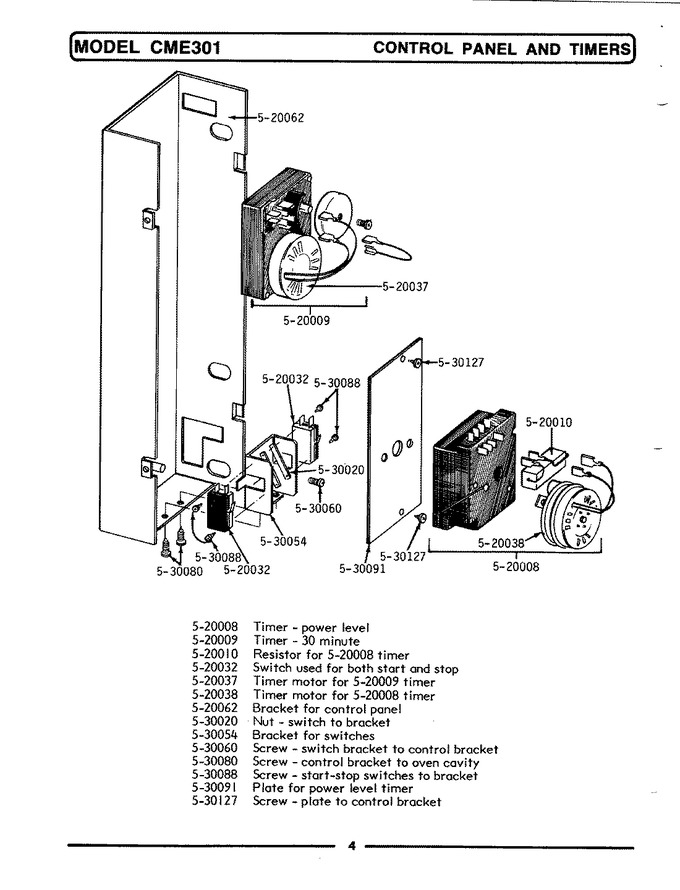

05 - Control Panel & Timer (front-cme301)


06 - Control Panel & Timer (rear-cme301)


07 - Door Assembly


08 - Microwave Shelf Kit


09 - Oven Cavity & Components


10 - Trim Kit (above Wall Oven)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	520008		Timer-power Level	00	Appelez-nous	-
2	520009		Timer-30 Minute	00	Appelez-nous	-
3	520010		Resistor	00	Appelez-nous	-
4	520032		Switch-interlock For Door	00	Appelez-nous	-
5	520037		Timer Motor	00	Appelez-nous	-
6	520038		Timer Motor F/5-20008 Timer	00	Appelez-nous	-
7	520062		Bracket For Control Panel	00	Appelez-nous	-
8	520020		Fan For Blower Motor	00	Appelez-nous	-
9	530054		Bracket For Switches	00	Appelez-nous	-
10	530060		Screw, No.6-32 X 1/2 Inch	00	Appelez-nous	-
11	W11233072		Screw, No.8 X 3/8 Inch   (Replaces: Y530080)	00		Immediately	$ 13.25
12	530088		Screw, No.4-40 X 5/8 Inch	00	Appelez-nous	-
13	Y530091		Plate For Power Level Timer	00	Appelez-nous	-
14	530127		Screw, No.8 X 1/4 Inch	00	Appelez-nous	-
