Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 520062 Bracket For Control Panel 00 Appelez-nous -
2 520114 Knob For Power Lever Timer 00 Appelez-nous -
3 520115 Knob For 30 Minute Timer 00 Appelez-nous -
4 520124 Control Panel 00 Appelez-nous -
5 520134 Control Harness 00 Appelez-nous -
6 530023 Trim For Control Panel 00 Appelez-nous -
7 530050 Gasket Insert F/panel-right 00 Appelez-nous -
8 530082 Screw, No.6 X 3/8 Inch 00 Appelez-nous -
9 WP12990527 Screw   (Replaces: 530083) 00 In-Stock Immediately $ 7.88

10 530085 Spacer 00 Appelez-nous -
11 530086 Spring 00 Appelez-nous -
12 530093 Push Button - Start 00 Appelez-nous -
13 530094 Push Button - Stop 00 Appelez-nous -
14 530119 Insert For Control Panel 00 Appelez-nous -
15 530126 Screw, No.6-19 X 1/2 Inch 00 Appelez-nous -
16 530174 Main Wire Harness 00 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

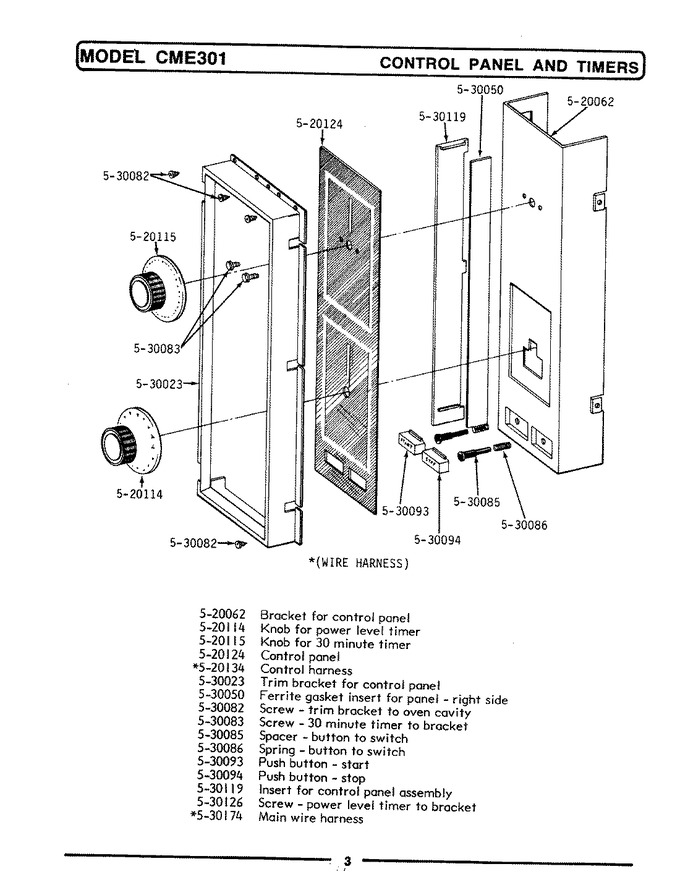

Diagram for CME301
