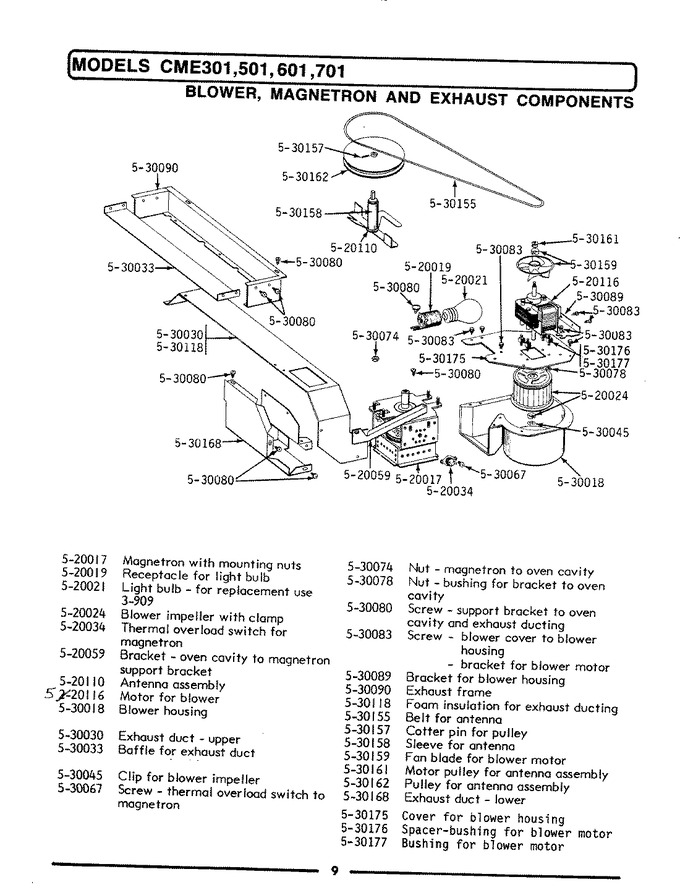

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	520017		Magnetron	00	Appelez-nous	-
2	520019		Receptacle For Light Bulb	00	Appelez-nous	-
3	40A15		Light Bulb   (Replaces: 520021)	00		Immediately	$ 1.98
4	Y520024		Blower Impeller With Clamp	00	Appelez-nous	-
5	520034		Thermal Overload Switch	00	Appelez-nous	-
6	520059		Bracket For Oven Cavity	00	Appelez-nous	-
7	520110		Antenna Assembly	00	Appelez-nous	-
8	520116		Motor For Blower	00	Appelez-nous	-
9	530018		Blower Housing	00	Appelez-nous	-
10	530030		Exhaust Duct-lower	00	Appelez-nous	-
11	530033		Baffle For Exhaust Duct	00	Appelez-nous	-
12	530045		Clip For Blower Impeller	00	Appelez-nous	-
13	530067		Screw, No.5-40 X 1/4 Inch	00	Appelez-nous	-
14	530074		Nut For Door Hinges	00	Appelez-nous	-
15	530078		Nut, No.8 - 32	00	Appelez-nous	-
16	W11233072		Screw, No.8 X 3/8 Inch   (Replaces: Y530080)	00		Immediately	$ 13.25
17	WP12990527		Screw   (Replaces: 530083)	00		Immediately	$ 7.88
18	530089		Bracket For Blower Housing	00	Appelez-nous	-
19	530090		Exhaust Frame	00	Appelez-nous	-
20	530118		Foam Insulation-exhaust Duc	00	Appelez-nous	-
21	Y530155		Belt For Antenna	00	Appelez-nous	-
22	530157		Cotter Pin For Pulley	00	Appelez-nous	-
23	530158		Sleeve For Antenna	00	Appelez-nous	-
24	530159		Fan Blade For Blower Motor	00	Appelez-nous	-
25	530161		Motor Pulley	00	Appelez-nous	-
26	530162		Pulley For Antenna	00	Appelez-nous	-
27	530168		Exhaust Duct - Lower	00	Appelez-nous	-
28	530175		Cover For Blower Housing	00	Appelez-nous	-
29	530176		Spacer	00	Appelez-nous	-
30	530177		Bushing	00	Appelez-nous	-
