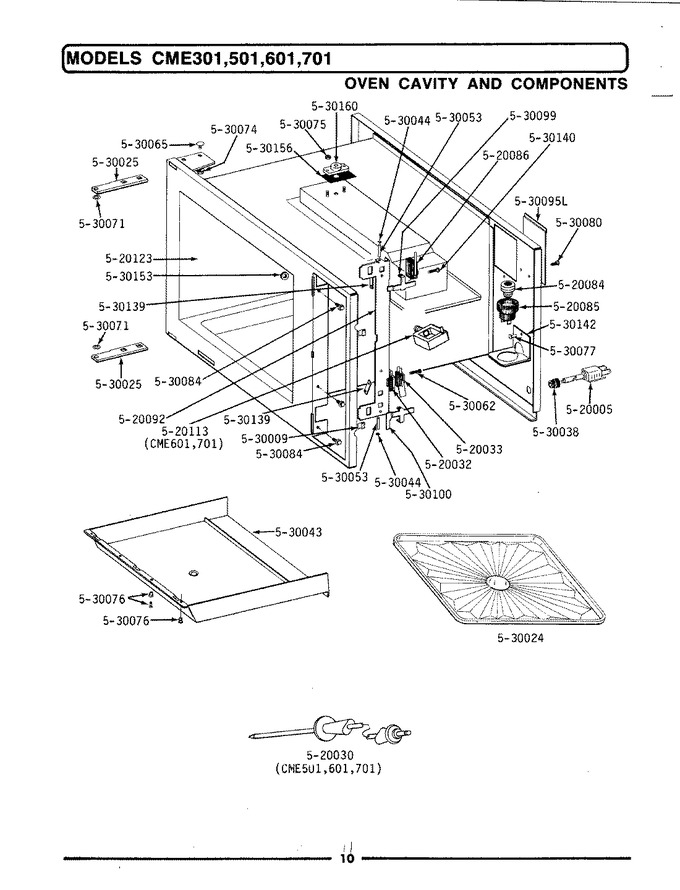

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 520005 | Power Cord | 00 |
|
- | ||||
| 2 | 520030 | Temperature Probe | 00 |
|
- | ||||
| 3 | 520032 | Switch-interlock For Door | 00 |
|
- | ||||
| 4 | 520033 | Switch-safety For Door | 00 |
|
- | ||||
| 5 | 520084 | Fuse | 00 |
|
- | ||||
| 6 | 520085 | Fuse Holder | 00 |
|
- | ||||
| 7 | Y520086 | Interlock Switch | 00 |
|
- | ||||
| 8 | 520092 | Bracket Plate For Switch | 00 |
|
- | ||||
| 9 | 520113 | Receptacle | 00 |
|
- | ||||
| 10 | 520123 | Oven Cavity | 00 |
|
- | ||||
| 11 | 530009 | Fastener | 00 |
|
- | ||||
| 12 | 530024 | Cooking Tray | 00 |
|
- | ||||
| 13 | 530025 | Door Hinge-upper And Lower | 00 |
|
- | ||||
| 14 | 530038 | Grommet For Power Cord | 00 |
|
- | ||||
| 15 | 530043 | Cover For Stirrer | 00 |
|
- | ||||
| 16 | 530044 | Clip For Pin | 00 |
|
- | ||||
| 17 | 530053 | Pin For Switch Actuator | 00 |
|
- | ||||
| 18 | 530062 | Screw, No.4-40 X 1 Inch | 00 |
|
- | ||||
| 19 | 530065 | Screw, 1/4-20 X 1/2 Inch | 00 |
|
- | ||||
| 20 | 530071 | Washer-door Hinge Bracket | 00 |
|
- | ||||
| 21 | 530074 | Nut For Door Hinges | 00 |
|
- | ||||
| 22 | 530075 | Nut For Stirrer Motor | 00 |
|
- | ||||
| 23 | Y530076 | Plastic Rivet | 00 |
|
- | ||||
| 24 | 530077 | Rivet | 00 |
|
- | ||||
| 25 | W11233072 | Screw, No.8 X 3/8 Inch (Replaces: Y530080) | 00 |
|
Immediately | $ 13.25 | |||
| 26 | 530084 | Screw, No.8-32 X 1/4 Inch | 00 |
|
- | ||||
| 27 | 530095L | Bulb Access Cover-almond | 00 |
|
- | ||||
| 28 | 530099 | Actuator F/door Switch-uppe | 00 |
|
- | ||||
| 29 | 530100 | Actuator F/door Switch-lowe | 00 |
|
- | ||||
| 30 | 530139 | Nut | 00 |
|
- | ||||
| 31 | Y530140 | Screw | 00 |
|
- | ||||
| 32 | 530142 | Support, Fuse Holder | 00 |
|
- | ||||
| 33 | 530153 | Nut For Receptacle | 00 |
|
- | ||||
| 34 | 530156 | Gasket For Antenna | 00 |
|
- | ||||
| 35 | Y530160 | Bearing For Antenna | 00 |
|
- |
