01 - Base Assembly & Components (501,601,701)

Diagram for 02 - Blower, Magnetron & Exhaust Components
02 - Blower, Magnetron & Exhaust Components

Diagram for 03 - Built-in Trim Kit
03 - Built-in Trim Kit

Diagram for 04 - Cabinet & Trim
04 - Cabinet & Trim

Diagram for 05 - Control Panel & Microprocessor (cme701)
05 - Control Panel & Microprocessor (cme701)

Diagram for 06 - Door Assembly
06 - Door Assembly

Diagram for 07 - Microwave Shelf Kit
07 - Microwave Shelf Kit

Diagram for 08 - Oven Cavity & Components
08 - Oven Cavity & Components

Diagram for 09 - Trim Kit (above Wall Oven)
09 - Trim Kit (above Wall Oven)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 520119 Control Panel 00 Appelez-nous -
2 520131 Microprocessor Board Assm 00 Appelez-nous -
3 520140 Touch Pad Switch 00 Appelez-nous -
6 530023 Trim For Control Panel 00 Appelez-nous -
7 530050 Gasket Insert F/panel-right 00 Appelez-nous -
8 530067 Screw, No.5-40 X 1/4 Inch 00 Appelez-nous -
9 530082 Screw, No.6 X 3/8 Inch 00 Appelez-nous -
10 530084 Screw, No.8-32 X 1/4 Inch 00 Appelez-nous -
11 530114 Fiber Washer 00 Appelez-nous -
12 530119 Insert For Control Panel 00 Appelez-nous -
NI 520141 Main Wire Harness 00 Appelez-nous -
NI 520142 Control Harness 00 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

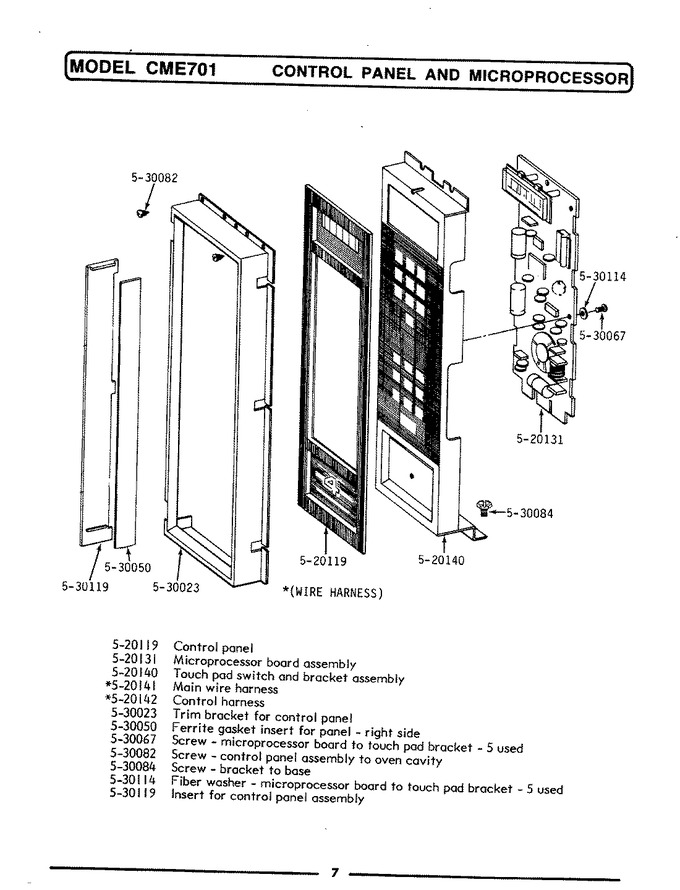

Diagram for CME701
