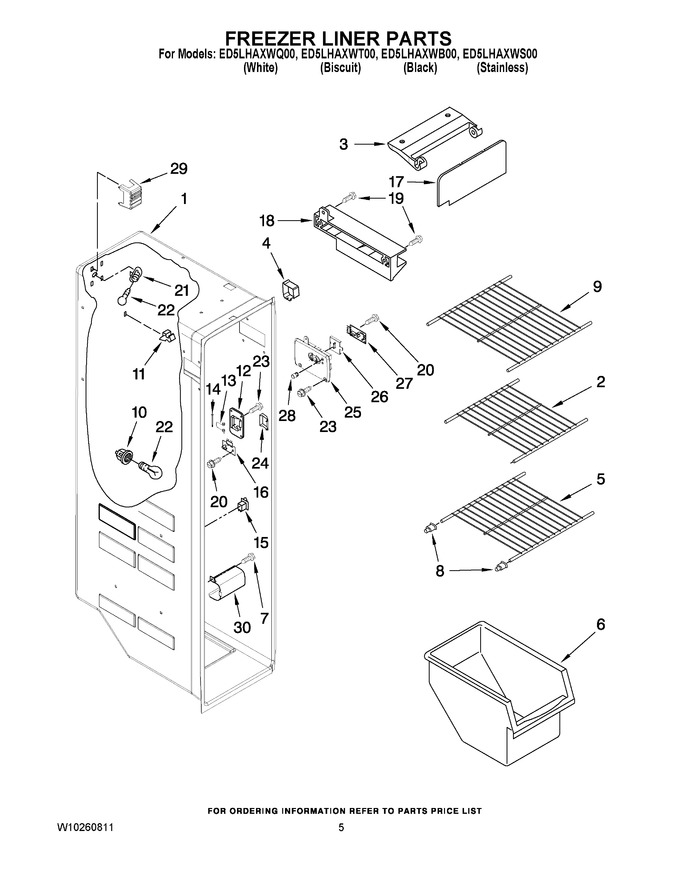

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | WPW10318961 | Shelf, Wire (short) Upper (Replaces: 2312041) |
|
Immediately | $ 81.55 | ||||
| 3 | WP2198641 | Bracket, Ice Maker Cover (Replaces: 2198641) |
|
$ 7.55 | |||||
| 4 | 2303234 | Shield, Wiring |
|
- | |||||
| 5 | WPW10318947 | Shelf, Wire (2) (Replaces: 2309596) |
|
$ 91.81 | |||||
| 6 | W11577967 | Freezer Bin (Replaces: 2309757) |
|
$ 96.30 | |||||
| 7 | W10142289 | Screw (Replaces: 3400893) |
|
$ 9.61 | |||||
| 8 | WPW10130299 | Cup, Shelf (Replaces: W10130299) |
|
Immediately | $ 14.70 | ||||
| 9 | WPW10318948 | Shelf, Wire (Replaces: 2309597) |
|
$ 155.23 | |||||
| 10 | WPW10119935 | Socket, Light (Replaces: 2155597) |
|
$ 106.16 | |||||
| 11 | 2215823 | Clip, Air Duct (2) (Replaces: 842534) |
|
$ 10.94 | |||||
| 12 | WP2198587 | Cover, Emitter (Replaces: 2198587) |
|
$ 110.83 | |||||
| 13 | WP2198635 | Spring (Replaces: 2198635) |
|
$ 91.43 | |||||
| 14 | WP2198634 | Pin (Replaces: 2198634) |
|
$ 18.65 | |||||
| 15 | W11457217 | Switch, Rocker Arm (Replaces: 1115373) |
|
$ 40.09 | |||||
| 16 | W11629974 | P.c. Board Emitter (Replaces: 2220398) |
|
Immediately | $ 421.12 | ||||
| 17 | WP2255720 | Cover, Ice Maker (Replaces: 2255720) |
|
$ 78.56 | |||||
| 18 | 2212321 | Slide, Ice Maker Mounting |
|
$ 67.14 | |||||
| 19 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 20 | 2006254 | Screw (Replaces: 489214) |
|
$ 13.79 | |||||
| 21 | 4387478 | Light Socket (Replaces: 2162085) |
|
Immediately | $ 115.67 | ||||
| 22 | 8009 | Light Bulb (Replaces: 527949) |
|
Immediately | $ 18.67 | ||||
| 23 | WPW10142283 | Screw (Replaces: 8281185) |
|
$ 10.33 | |||||
| 24 | WP2198633 | Flipper (Replaces: 2198633) |
|
Immediately | $ 50.68 | ||||
| 25 | W10173569 | Cover, Receiver |
|
$ 66.93 | |||||
| 26 | 2315398 | Slide, Ice Maker Shut Off |
|
$ 11.45 | |||||
| 27 | W11629974 | P.c. Board, Receiver (Replaces: W10193666) |
|
Immediately | $ 421.12 | ||||
| 28 | WP2198643 | Lens (Replaces: 2198643) |
|
$ 8.59 | |||||
| 29 | 2198589 | Light Shield |
|
- | |||||
| 30 | W11298978 | Light Lens (Replaces: 2212340) |
|
$ 98.57 |
