Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2258617T Refrigerator Door (includes Item No.6) (biscuit) Appelez-nous -
1 2258617B Refrigerator Door (includes Item No.6) (black) Appelez-nous -
1 2217535S Refrigerator Door (includes Item No.6) (stainless) Appelez-nous -
1 2258617W Refrigerator Door (includes Item No.6) (white) Appelez-nous -
2 WP2256101 Compartment Door   (Replaces: 2256101) In-Stock Immediately $ 89.42

3 WPW10321304 Shelf Bin (3)   (Replaces: 2304235) In-Stock Immediately $ 44.73

4 WP3400012 Screw   (Replaces: 3400012) Special Order $ 8.26

5 WP2255411 Clip   (Replaces: 2255411) Special Order $ 36.55

6 2159083 Door Gasket, Magnetic (black)   (Replaces: 2309529) Special Order $ 251.49

6 2159075 Door Gasket, Magnetic (mist Beige)   (Replaces: 2309528) In-Stock Immediately $ 333.00

7 WP2309941 Shelf Bin   (Replaces: 2309941) In-Stock Immediately $ 76.32

8 WPW10276348 Handle (apollo Grey)   (Replaces: W10276348) In-Stock Immediately $ 223.91

8 WPW10127761K Handle (white)   (Replaces: W10127761) Special Order $ 196.00

8 WPW10127763 Handle (biscuit)   (Replaces: W10127763) Special Order $ 181.88

8 WPW10127762 Handle (black)   (Replaces: W10127762) Special Order $ 200.18

9 W10267047 Screw (4)   (Replaces: W10201588) Special Order $ 13.47

10 WP2182179 Door Closer, Upper Cam   (Replaces: 2182178) In-Stock Immediately $ 6.39

11 WP489483 Screw   (Replaces: 489420) Special Order $ 11.41

12 W10185571 Bracket, Door Stop (black) Appelez-nous -
12 W10185570 Bracket, Door Stop (silver) Special Order $ 11.59

13 WPW10288153 Screw, Mounting   (Replaces: W10129563) In-Stock Immediately $ 9.65

14 W10127769 Handle, Endcap (white) Appelez-nous -
14 W10127772 Handle, Endcap (apollo Grey) Special Order $ 49.75

14 W10127770 Handle, Endcap (black) Appelez-nous -
14 W10127771 Handle, Endcap (biscuit) Appelez-nous -
15 WP2182181 Thimble-top   (Replaces: 2308091) Special Order $ 8.15

16 WP2213265 Nameplate   (Replaces: 2255121) In-Stock Immediately $ 93.18

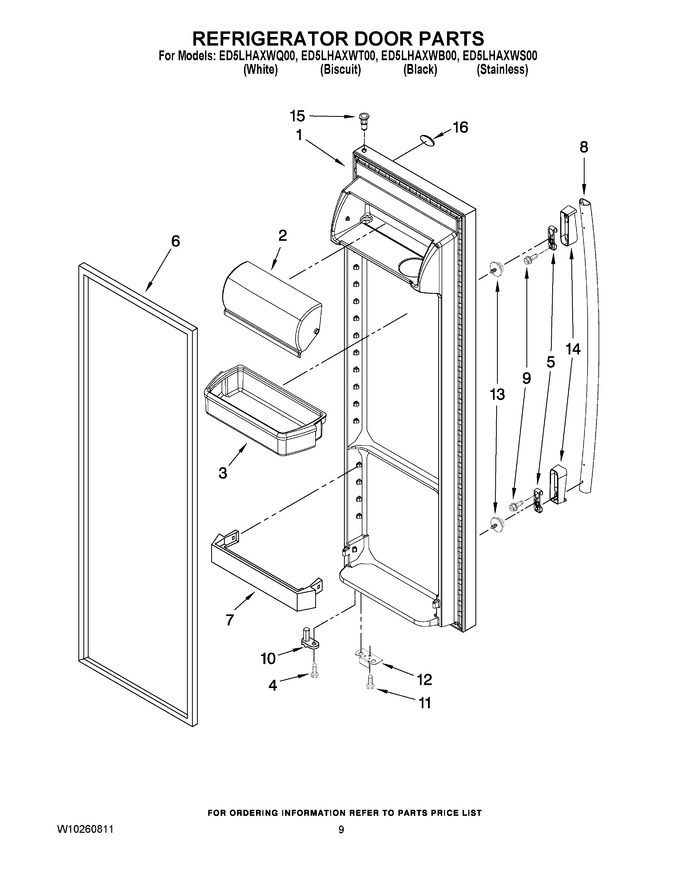

    View Diagram in Separate Window     Print Icon   Print Part List
