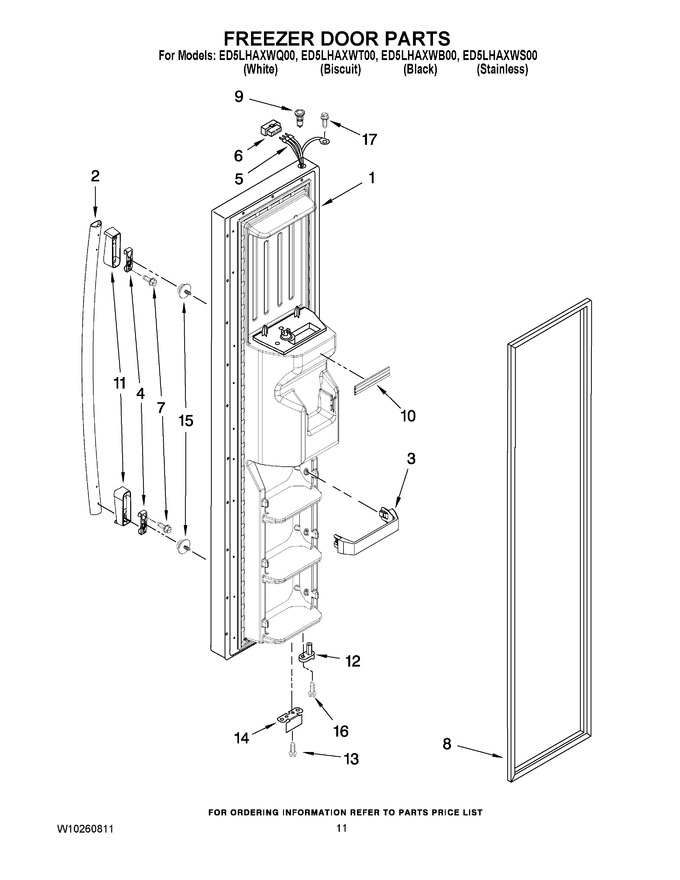

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10279471		Freezer Door (includes No.8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	W10231597		Freezer Door (includes No.8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10273361		Freezer Door (includes No.8 And Dispenser Front Parts) (stainless)		Appelez-nous	-
1	W10231596		Freezer Door (includes No.8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	WPW10127761K		Handle (white)   (Replaces: W10127761)				$ 196.00
2	WPW10127763		Handle (biscuit)   (Replaces: W10127763)				$ 181.88
2	WPW10127762		Handle (black)   (Replaces: W10127762)				$ 200.18
2	WPW10257118K		Handle (apollo Grey)   (Replaces: W10257118)				$ 196.99
3	WP2309718		Door Trim (3)   (Replaces: 2309718)				$ 61.49
4	WP2255411		Clip   (Replaces: 2255411)				$ 36.55
5	2198619		Dispenser Harness		Appelez-nous	-
6	WP2154473		Connector   (Replaces: 2154473)				$ 24.83
7	W10267047		Screw (4)   (Replaces: W10201588)				$ 13.47
8	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309532)				$ 325.70
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2309533)				$ 332.49
9	WP2182181		Thimble Top   (Replaces: 2182181)				$ 8.15
10	WPW10307490		Trim, Door Shelf   (Replaces: 2219982)			Immediately	$ 24.27
11	W10127769		Handle, Endcap (white)		Appelez-nous	-
11	W10127772		Handle, Endcap (apollo Grey)				$ 49.75
11	W10127770		Handle, Endcap (black)		Appelez-nous	-
11	W10127771		Handle, Endcap (biscuit)		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	W10185571		Bracket, Door Stop (black)		Appelez-nous	-
14	W10185570		Bracket, Door Stop (silver)				$ 11.59
15	WPW10288153		Screw, Mounting   (Replaces: W10129563)			Immediately	$ 9.65
16	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
17	WP489128		Screw   (Replaces: 488500)				$ 11.40
