01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Refrigerator Door Parts


06 - Freezer Door Parts


07 - Dispenser Front Parts

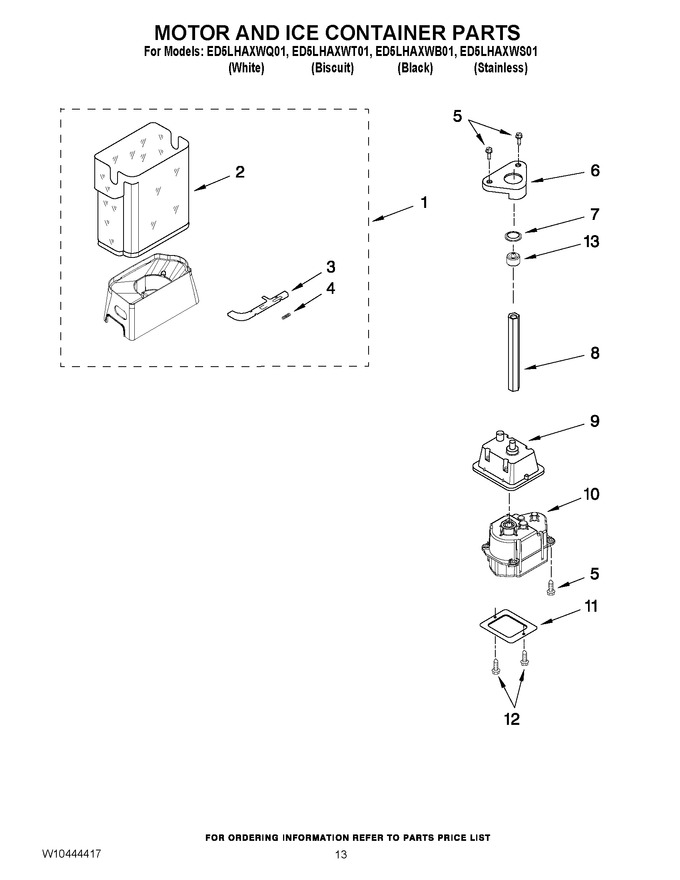

08 - Motor And Ice Container Parts


09 - Air Flow Parts


10 - Unit Parts


11 - Icemaker Parts


12 - Control Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10204465		Ice Bin Assy		Appelez-nous	-
2	WP2198573		Ice Bin   (Replaces: 2198573)			Immediately	$ 254.08
3	2317277		Latch, Bin				$ 79.23
4	WP2198608		Spring, Latch   (Replaces: 2198608)				$ 7.19
5	WP8281163		Screw   (Replaces: 8281163)			Immediately	$ 10.19
6	WP2188919		Holder   (Replaces: 2188919)				$ 7.19
7	WP2198628		Seal   (Replaces: 2198628)			Immediately	$ 11.97
8	WP2188917		Drive Shaft   (Replaces: 2188916)				$ 100.18
9	2256154		Enclosure, Motor				$ 49.78
10	2315544		Dispenser, Motor		Appelez-nous	-
11	2212305		Cover		Appelez-nous	-
12	WP489478		Screw   (Replaces: 489478)				$ 7.75
13	WP2315559		Sleeve, Coupling   (Replaces: 2315559)			Immediately	$ 81.34
100	W10204465		Ice Container (complete)		Appelez-nous	-
