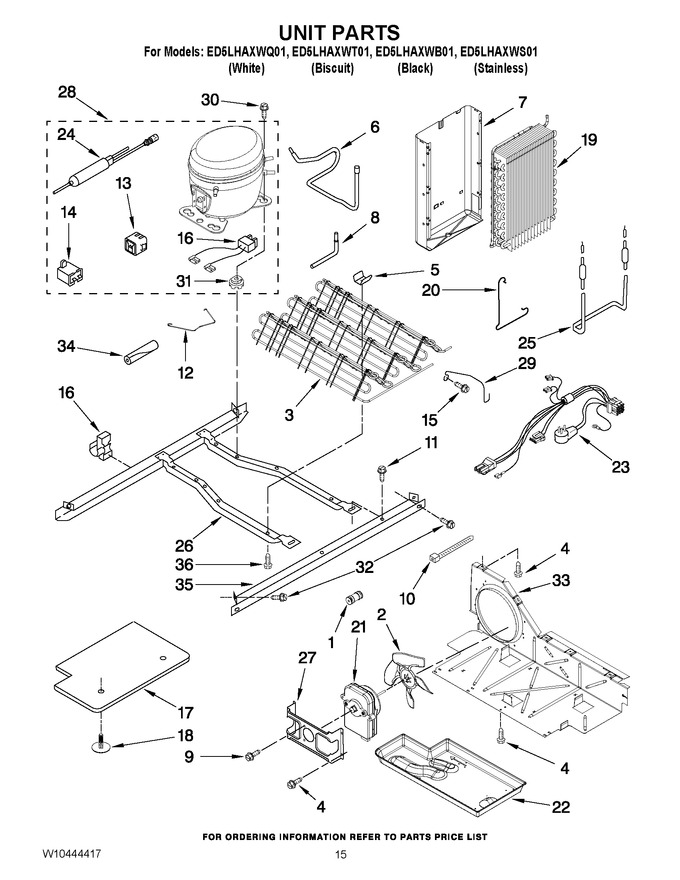

10 - Unit Parts


11 - Icemaker Parts


12 - Control Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10334458		Connector   (Replaces: W10334458)				$ 21.59
2	W10156818		Fan, Blade   (Replaces: 12825802)			Immediately	$ 62.11
3	2324712		Condenser Assembly   (Replaces: W10222348)				$ 308.05
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
5	W10683556		Clip, Condenser   (Replaces: 2311725)				$ 18.46
6	2205765		Tube Suction				$ 36.04
7	W10194475		Heat Shield And Drain Pan		Appelez-nous	-
8	2325479		Process Tube		Appelez-nous	-
9	WP8533993		Screw   (Replaces: 8533993)				$ 10.57
10	WPW10339879		Wire Tie   (Replaces: 2263990)				$ 7.90
11	WP489427		Screw   (Replaces: 489427)				$ 7.47
12	W10204187		Clip, Retaining		Appelez-nous	-
13	W10896198		Start-device, Combination (start Relay And Overload) (service)   (Replaces: 2304884)				$ 185.91
13	WPW10189190		Start-device, Combination (start Relay And Overload) (production)   (Replaces: W10197427)			Immediately	$ 131.29
14	WPW10662129		Capacitor (service)   (Replaces: 2264017)			Immediately	$ 58.86
15	WP489478		Screw   (Replaces: 489478)				$ 7.75
16	2208280		Clip, Wire & Tube		Appelez-nous	-
17	2304891		Unit Cover, Bottom		Appelez-nous	-
18	489396		Clip				$ 10.72
19	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 363.32
20	2161324		Clip		Appelez-nous	-
21	WP2188874		Motor, Fan   (Replaces: 2188874)			Immediately	$ 113.96
22	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
23	WPW10309395		Harness, Unit   (Replaces: W10309395)				$ 293.67
24	WPW10143759		Drier (service)   (Replaces: 2317845)			Immediately	$ 30.78
24	WPW10143759		Drier (production)   (Replaces: W10177049)			Immediately	$ 30.78
25	WP2323198		Heater, Defrost   (Replaces: 2188175)			Immediately	$ 90.70
26	W10196321		Unit Mounting Frame		Appelez-nous	-
27	WP2181929		Bracket, Fan Motor   (Replaces: 2181929)				$ 12.31
28	W10139462		Compressor (includes Items 13, 14, 24, & 31) (also Order 876765 Tube Kit)   (Replaces: W10120459)				$ 636.50
29	2260517		Guard, Fan		Appelez-nous	-
30	W11661574		Screw   (Replaces: 489473)				$ 13.61
31	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.42
31	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 6.95
32	489340		Screw		Appelez-nous	-
33	W10163483		Air Baffle		Appelez-nous	-
34	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
35	W10196313		Unit Mounting Rail		Appelez-nous	-
36	W11544659		Screw   (Replaces: 8281232)				$ 13.67
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 130.71
NI	876764		Valve, Access (3/16``)			Immediately	$ 91.35
NI	N/P		Refrigerant Charge (5.0 Oz. (r-134a))		Appelez-nous	-
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
NI	978026		Valve, Access (5/16``)			Immediately	$ 128.09
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
