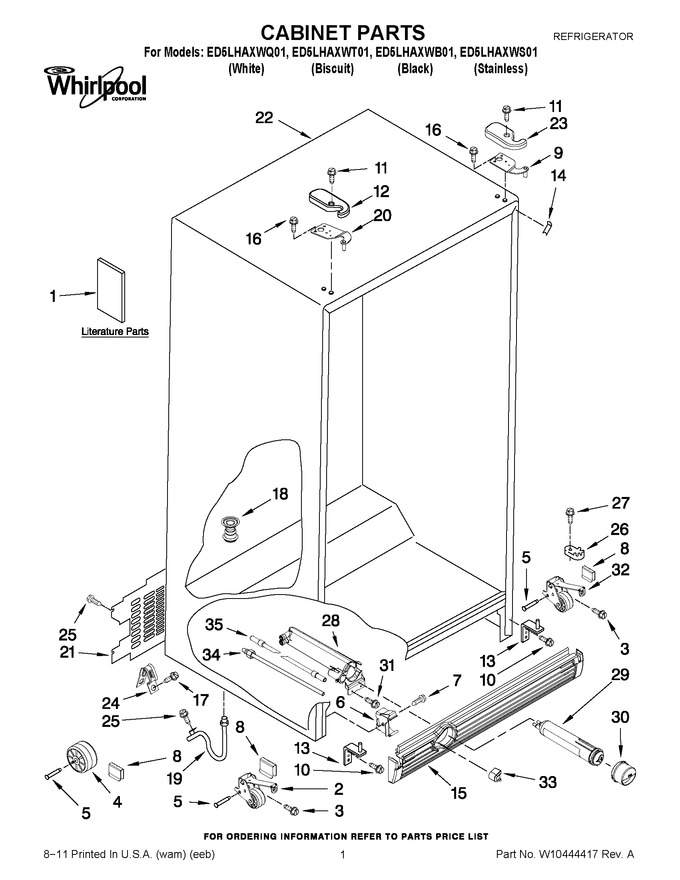

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Refrigerator Door Parts


06 - Freezer Door Parts


07 - Dispenser Front Parts


08 - Motor And Ice Container Parts


09 - Air Flow Parts


10 - Unit Parts


11 - Icemaker Parts


12 - Control Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10207926		Service & Wiring Sheet		Appelez-nous	-
1	W10321466		Owner?s Manual		Appelez-nous	-
1	2261037		Instruction Sheet (door Removal)		Appelez-nous	-
1	628370		Modular Icemaker Service Sheet		Appelez-nous	-
1	W10231590		Energy Guide		Appelez-nous	-
2	WPW10304660		Front Roller Left   (Replaces: W10304660)			Immediately	$ 70.38
3	W11544561		Screw   (Replaces: 2152958)				$ 14.05
4	WPW10475495		Rear, Roller   (Replaces: 2150304)			Immediately	$ 32.06
5	W11594405		Axle, Roller   (Replaces: 2262072)			Immediately	$ 18.21
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.72
7	WP489478		Screw   (Replaces: 489478)				$ 7.75
8	WP2174706		Clip, Axle   (Replaces: 2174706)				$ 10.98
9	W10287684		Hinge Top (rc)				$ 46.69
10	WP489497		Screw   (Replaces: 3400113)			Immediately	$ 29.09
11	WP8281227		Screw   (Replaces: 8281227)				$ 10.44
12	2203407T		Hinge Cover (biscuit)		Appelez-nous	-
12	WP2203407B		Hinge Cover (black)   (Replaces: 2203407B)				$ 19.52
12	WP2203407W		Hinge Cover (white)   (Replaces: 2203407W)				$ 20.75
13	W10251408		Hinge Bottom				$ 59.74
14	W10283958		Filler, Wrapper (biscuit)				$ 24.41
14	W11252732		Filler, Wrapper (black)   (Replaces: W10283960)				$ 12.45
14	WPW10283959		Filler, Wrapper (white)   (Replaces: W10283959)				$ 7.82
15	WPW10311032		Grille (white)   (Replaces: W10283951)				$ 161.58
15	WPW10311033		Grille (black)   (Replaces: W10283949)				$ 176.10
15	W10283950		Grille (biscuit)		Appelez-nous	-
16	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
17	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
18	W11566763		Drain Fitting   (Replaces: 2304888)			Immediately	$ 50.90
19	W11512417		Extension, Drain Fitting   (Replaces: W10153550)				$ 34.79
20	W10287685		Hinge Top (fc)				$ 63.39
21	WP2188755		Cover, Unit   (Replaces: 2188735)				$ 135.91
22	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
23	WP2203408B		Hinge Cover (black)   (Replaces: 2203408B)				$ 18.63
23	2203408T		Hinge Cover (biscuit)		Appelez-nous	-
23	WP2203408W		Hinge Cover (white)   (Replaces: 2203408W)				$ 20.97
24	549193		Clamp, Service Cord				$ 13.39
25	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
26	WPW10329686		Door Closer, Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 5.43
27	WP489483		Screw   (Replaces: 489483)				$ 10.87
28	WPW10121138		Housing, Water Filter   (Replaces: W10121138)			Immediately	$ 112.91
29	EDR3RXD1B		Water Filter   (Replaces: 4396841)			Immediately	$ 49.99
30	2260502T		Cap, Water Filter (biscuit)		Appelez-nous	-
30	WP2260518W		Cap, Water Filter (white)   (Replaces: 2260502W)			Immediately	$ 31.90
30	WP2260518B		Cap, Water Filter (black)   (Replaces: 2260502B)			Immediately	$ 28.26
31	WP489500		Screw   (Replaces: 489500)				$ 7.78
32	WPW10304659		Front Roller, Right   (Replaces: W10304659)			Immediately	$ 68.52
33	2260503W		Button, Water Filter (white)			Immediately	$ 34.16
33	WP2260503B		Button, Water Filter (biscuit)   (Replaces: 2260503T)				$ 72.78
33	WP2260503B		Button, Water Filter (black)   (Replaces: 2260503B)				$ 72.78
34	WPW10350006		Tube, Filter Outlet   (Replaces: 2255012)				$ 115.54
35	W10281289		Tube, Filter Inlet				$ 57.80
