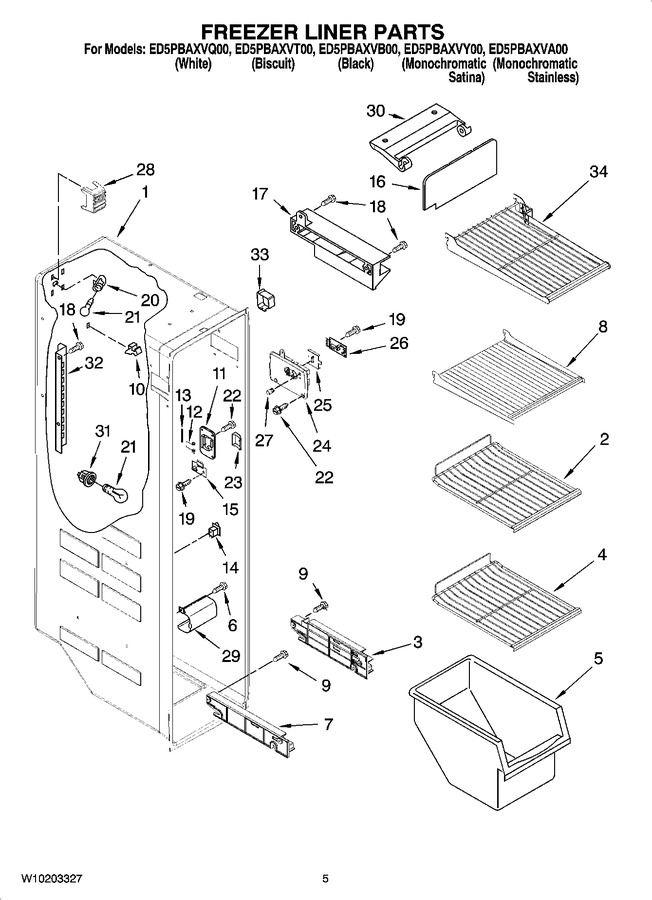

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	2211746K		Shelf, Slide Out Upper		Appelez-nous	-
3	2301291		Track, Basket-dual (right)				$ 154.30
3	2301292		Track, Basket-dual (left)				$ 183.69
4	WPW10317556		Shelf, Slide Out   (Replaces: 2211742K)				$ 94.06
5	WP2182971		Freezer Bin   (Replaces: 2182971)				$ 147.22
6	W10142289		Screw   (Replaces: 3400893)				$ 9.61
7	2301289		Shelf Track (right Side)				$ 86.80
7	2301290		Shelf Track (left Side)				$ 134.88
8	2205837K		Shelf (2)				$ 42.67
9	W10759522		Screw (8)   (Replaces: W10004810)				$ 8.24
10	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.94
11	WP2198587		Cover, Emitter   (Replaces: 2198587)				$ 110.83
12	WP2198635		Spring   (Replaces: 2198635)				$ 91.43
13	WP2198634		Pin   (Replaces: 2198634)				$ 18.65
14	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 40.09
15	W11629974		P.c. Board Emitter   (Replaces: 2220398)			Immediately	$ 421.12
16	WP2255720		Cover, Ice Maker   (Replaces: 2255720)				$ 78.56
17	2212321		Slide, Ice Maker Mounting				$ 67.14
18	WP489478		Screw   (Replaces: 489478)				$ 8.18
19	2006254		Screw   (Replaces: 489214)				$ 13.79
20	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 115.67
21	W11679940		Light Bulb   (Replaces: 2255743)			Immediately	$ 11.30
22	WPW10142283		Screw   (Replaces: 8281185)				$ 10.33
23	WP2198633		Flipper   (Replaces: 2198633)			Immediately	$ 50.68
24	W10173569		Cover, Receiver				$ 66.93
25	2315398		Slide, Ice Maker Shut Off				$ 11.45
26	W11629974		P.c. Board, Receiver   (Replaces: 2255114)			Immediately	$ 421.12
27	WP2198643		Lens   (Replaces: 2198643)				$ 8.59
28	2198589		Light Shield		Appelez-nous	-
29	W11298978		Light Lens   (Replaces: 2212340)				$ 98.57
30	WP2198641		Bracket, Ice Maker Cover   (Replaces: 2198641)				$ 7.55
31	WPW10119935		Socket, Light   (Replaces: 2155597)				$ 106.16
32	2198609		Ladder (left Side)				$ 42.40
32	2198610		Ladder (right Side)				$ 63.20
33	2303234		Shield, Wiring		Appelez-nous	-
34	W10145262		Shelf, Pizza		Appelez-nous	-
