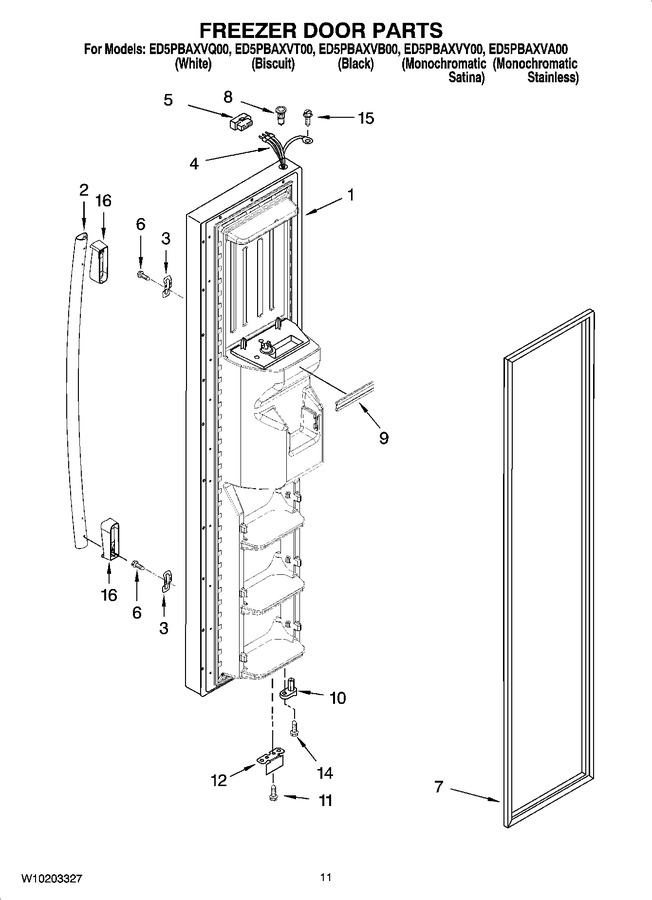

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10175864		Freezer Door (includes 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	W10175866		Freezer Door (includes 8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	W10175865		Freezer Door (includes 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10177272		Freezer Door (includes 8 And Dispenser Front Parts) (mono Stainless)		Appelez-nous	-
1	W10177271		Freezer Door (includes 8 And Dispenser Front Parts) (mono Satina)		Appelez-nous	-
2	W10210942A		Handle, Extr (black)   (Replaces: W10127809)				$ 129.53
2	W10210942A		Handle, Extr (white)   (Replaces: W10127808)				$ 129.53
2	W10210944A		Handle, Extr (biscuit)   (Replaces: W10127810)		Appelez-nous	-
2	W10273556		Handle, Extr (stainless, All)   (Replaces: W10127811)				$ 294.85
3	WP2255411		Clip   (Replaces: 2255411)				$ 36.55
4	WPW10193328		Dispenser Harness   (Replaces: W10167528)				$ 134.19
5	WP2154473		Connector   (Replaces: 2154473)				$ 24.83
6	WP8533988		Screw (4)   (Replaces: W10155511)			Immediately	$ 8.78
7	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 332.49
7	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221303)				$ 325.70
7	W10136735		Door Gasket, Magnetic (apollo Grey)   (Replaces: 2326339)				$ 254.84
8	2323581		Thimble-top (for White, Black, Biscuit And Stainless Vcm Models)		Appelez-nous	-
8	WP2182181		Thimble, Top (for Stainless Steel Model)   (Replaces: 2308091)				$ 8.15
9	WPW10307490		Trim, Door Shelf   (Replaces: 2219982)			Immediately	$ 24.27
10	2323535		Door Closer, Upper Cam				$ 33.97
11	WP489483		Screw   (Replaces: 489420)				$ 11.41
12	2323534B		Bracket, Door Stop (black)		Appelez-nous	-
12	2323534		Bracket, Door Stop (chrome)		Appelez-nous	-
14	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
15	WP489128		Screw   (Replaces: 488500)				$ 11.40
16	W10152864		Handle, Endcap (stainless, All)		Appelez-nous	-
16	W10127813		Handle, Endcap (white)				$ 82.43
16	W10127815		Handle, Endcap (biscuit)		Appelez-nous	-
16	W10127814		Handle, Endcap (black)		Appelez-nous	-
