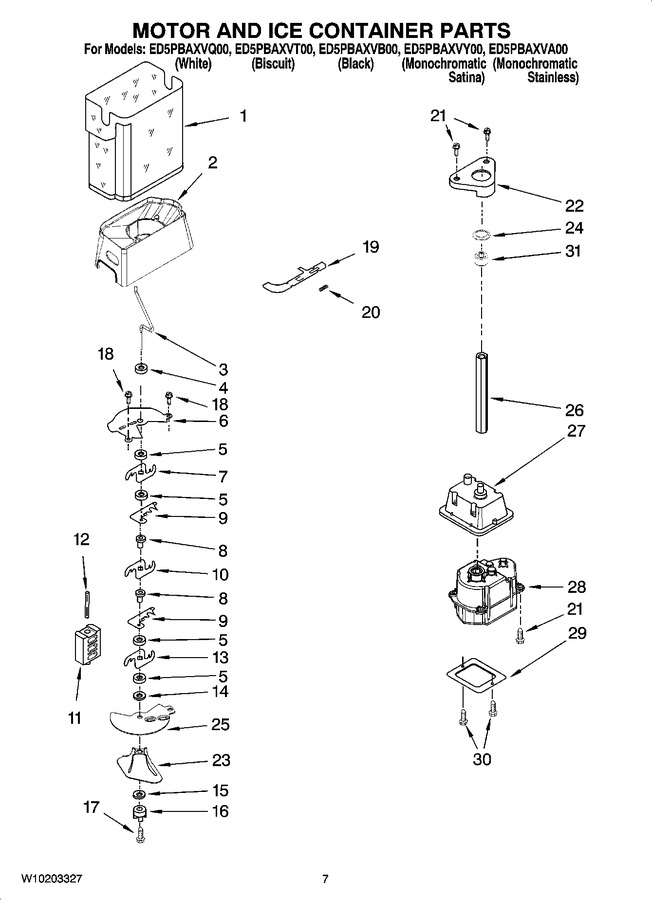

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2198573 | Ice Bin (Replaces: 2198573) |
|
Immediately | $ 266.78 | ||||
| 2 | WPW10130497 | Crusher Bin (Replaces: 2317254) |
|
$ 188.06 | |||||
| 3 | WP2317240 | Auger (Replaces: 2317240) |
|
$ 168.21 | |||||
| 4 | 2258220 | Washer |
|
$ 8.02 | |||||
| 5 | WP1119007 | Spacer, Flat (4) (Replaces: 1119007) |
|
$ 14.77 | |||||
| 6 | 2317248 | Cover, Crusher |
|
- | |||||
| 7 | W10278733 | Blade, Rotary (Replaces: 2257024) |
|
$ 91.00 | |||||
| 8 | WP1119005 | Spacer, Step (2) (Replaces: 1119005) |
|
$ 11.74 | |||||
| 9 | 2257020 | Blade, Fixed |
|
$ 59.91 | |||||
| 10 | W10278732 | Blade, Rotary (Replaces: 2257023) |
|
$ 91.00 | |||||
| 11 | 2317239 | Block, Blade |
|
$ 11.47 | |||||
| 12 | 489229 | Roll Pin |
|
$ 48.47 | |||||
| 13 | W10278731 | Blade, Rotary (Replaces: 2257022) |
|
$ 90.87 | |||||
| 14 | 489235 | Washer, Plain |
|
$ 8.05 | |||||
| 15 | WP2198661 | Washer, Coupling (Replaces: 2198661) |
|
$ 11.45 | |||||
| 16 | W11629923 | Coupling (Replaces: 2188918) |
|
$ 35.31 | |||||
| 17 | WP8281164 | Screw (Replaces: 8281164) |
|
$ 11.33 | |||||
| 18 | WP3400065 | Screw (Replaces: 3400065) |
|
Immediately | $ 8.18 | ||||
| 19 | 2317277 | Latch, Bin |
|
$ 79.23 | |||||
| 20 | WP2198608 | Spring, Latch (Replaces: 2198608) |
|
$ 7.55 | |||||
| 21 | WP8281163 | Screw (Replaces: 8281163) |
|
Immediately | $ 10.70 | ||||
| 22 | WP2188919 | Holder (Replaces: 2188919) |
|
$ 7.55 | |||||
| 23 | 2317243 | Wiper |
|
$ 84.91 | |||||
| 24 | WP2198628 | Seal (Replaces: 2198628) |
|
Immediately | $ 12.57 | ||||
| 25 | 2317250 | Divider, Chamber |
|
$ 36.47 | |||||
| 26 | WP2188917 | Drive Shaft (Replaces: 2188916) |
|
$ 105.19 | |||||
| 27 | 2322488 | Enclosure, Motor |
|
$ 88.63 | |||||
| 28 | W10822606 | Dispenser, Motor (Replaces: 2322580) |
|
Immediately | $ 156.54 | ||||
| 29 | 2212305 | Cover |
|
- | |||||
| 30 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 31 | WP2315559 | Sleeve, Coupling (Replaces: 2315559) |
|
Immediately | $ 85.41 | ||||
| 100 | WP2317251 | Ice Container (complete) (Replaces: 2317251) |
|
$ 438.30 |
