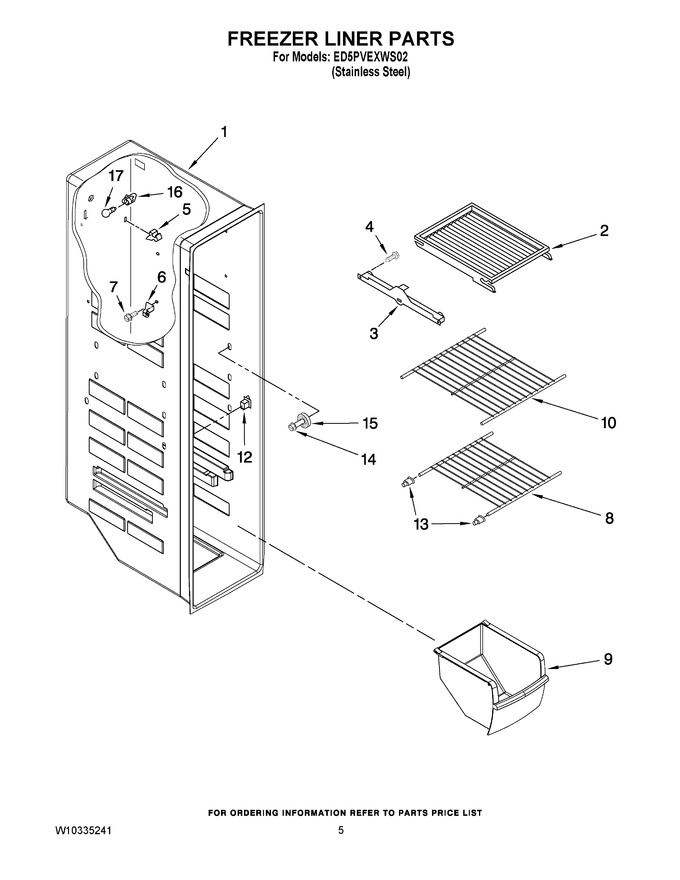

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not Aseviceable Part)		Appelez-nous	-
2	2171714		Shelf, Top Compartment		Appelez-nous	-
3	W10845585		Slide, Container (left Side)   (Replaces: 1119237)				$ 139.41
3	W10845583		Slide, Container (right Side)   (Replaces: 1119293)				$ 130.12
4	718257		Screw   (Replaces: 489100)		Appelez-nous	-
5	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.94
6	2196206		Support, Stud (4)		Appelez-nous	-
7	W10142289		Screw   (Replaces: 3400893)				$ 9.61
8	WP2174267		Shelf, Wire   (Replaces: 2174267)				$ 93.35
9	WP2182971		Freezer Bin   (Replaces: 2182971)				$ 147.22
10	2174268		Shelf, Wire				$ 38.12
12	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 40.09
13	2196207		Cup, Shelf Mount				$ 7.61
14	WP3400806		Screw   (Replaces: 8281158)				$ 8.10
15	W11527119		Stud Assembly (4)   (Replaces: W10173127)		Appelez-nous	-
16	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 115.67
17	W11679940		Light Bulb   (Replaces: W10194422)			Immediately	$ 11.30

    View Diagram in Separate Window       Print Part List
