SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts

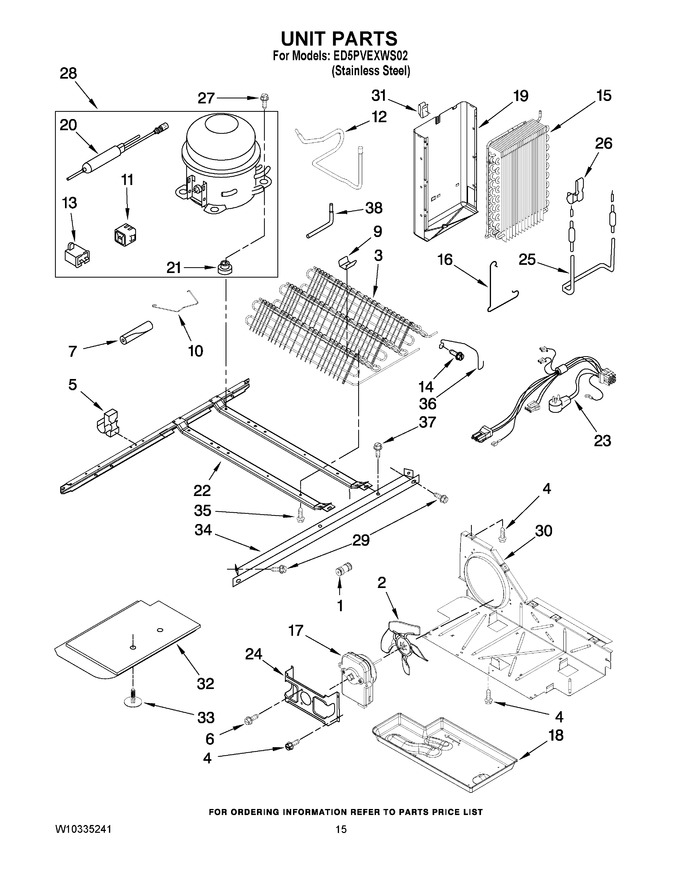

09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10334458		Connector, Water   (Replaces: W10271540)				$ 21.59
2	W10156818		Fan, Blade   (Replaces: 12825802)			Immediately	$ 62.11
3	2324712		Condenser Assembly   (Replaces: W10196260)				$ 308.05
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
5	2208280		Clip, Wire		Appelez-nous	-
6	WP8533993		Screw   (Replaces: 8533993)				$ 10.57
7	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
9	W10683556		Clip, Condenser   (Replaces: 2216914)				$ 18.46
10	W11661170		Clip, Retaining   (Replaces: W10174384)			Immediately	$ 11.30
11	WPW10189190		Start-device, Combination (start Relay And Overload)   (Replaces: W10189190)			Immediately	$ 131.29
12	W10528574		Tube Suction   (Replaces: W10177642)				$ 152.72
13	WPW10662129		Capacitor (service)   (Replaces: 2264017)			Immediately	$ 58.86
14	WP489478		Screw   (Replaces: 489478)				$ 7.75
15	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 363.32
16	2161324		Clamp		Appelez-nous	-
17	WP2188874		Fan, Motor   (Replaces: 2188874)			Immediately	$ 113.96
18	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
19	2217194		Heat Shield		Appelez-nous	-
20	WPW10143759		Drier   (Replaces: W10177049)			Immediately	$ 30.78
21	W11661108		Grommet   (Replaces: 2183042)				$ 14.49
22	W10196321		Unit Mounting Frame		Appelez-nous	-
23	WPW10309395		Unit, Harness   (Replaces: 2187783)				$ 293.67
24	WP2181929		Fan, Motor Bracket   (Replaces: 2181929)				$ 12.31
25	WP2323198		Heater, Defrost   (Replaces: 2323198)			Immediately	$ 90.70
26	2161324		Clip		Appelez-nous	-
27	876811		Screw   (Replaces: 489373)				$ 7.42
28	W10233961		Compressor (also Order 876765 Tube Kit)   (Replaces: W10183575)				$ 612.76
29	489340		Screw		Appelez-nous	-
30	W10896764		Air Baffle   (Replaces: 2196202)				$ 96.38
31	2155547		Clip, Heat Shield		Appelez-nous	-
32	2304899		Unit Cover, Bottom		Appelez-nous	-
33	489396		Clip				$ 10.72
34	WPW10196323		Unit Mounting Rail   (Replaces: W10196323)				$ 118.94
35	W11544659		Screw   (Replaces: 8281232)				$ 13.67
36	2260517		Guard, Fan		Appelez-nous	-
37	WP489427		Screw   (Replaces: 489427)				$ 7.47
38	W10221712		Process Tube		Appelez-nous	-
NI	978026		Valve, Access (5/16``)			Immediately	$ 128.09
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2)		Appelez-nous	-
NI	978029		Valve Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 130.71
NI	876764		Valve, Access(3/16``)			Immediately	$ 91.35
NI	NP		Refrigerant Charge 5.0 Oz. (r-134a)		Appelez-nous	-
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25

    View Diagram in Separate Window       Print Part List
