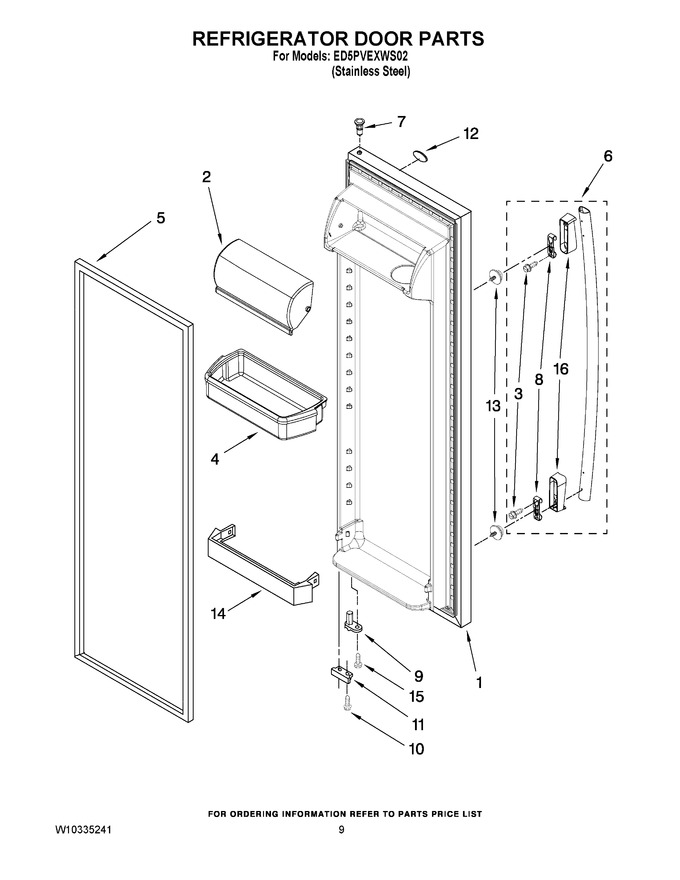

06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10295753		Refrigerator Door (includes Item 5) (stainless)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 85.16
3	WP8533988		Screw   (Replaces: W10155511)			Immediately	$ 7.95
4	WPW10321304		Door Bin (3)   (Replaces: 2304235)			Immediately	$ 44.73
5	2159083		Door Gasket Magnetic   (Replaces: 2221313)				$ 251.49
6	W10273555		Handle, Assy   (Replaces: W10172031)				$ 187.89
7	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.76
8	WP2255411		Clip   (Replaces: 2255411)				$ 34.81
9	WP2182179		Door Closer,   (Replaces: 2182178)			Immediately	$ 6.39
10	WP489483		Screw   (Replaces: 489420)				$ 10.87
11	W10185571		Bracket, Door Stop		Appelez-nous	-
12	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 88.74
13	WPW10288153		Screw   (Replaces: W10129563)			Immediately	$ 8.69
14	WP2156022		Trivet   (Replaces: 2156022)			Immediately	$ 72.80
15	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
16	W10171987		End Cap		Appelez-nous	-
