01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Air Flow


11 - Control


12 - Icemaker, Lit/optional

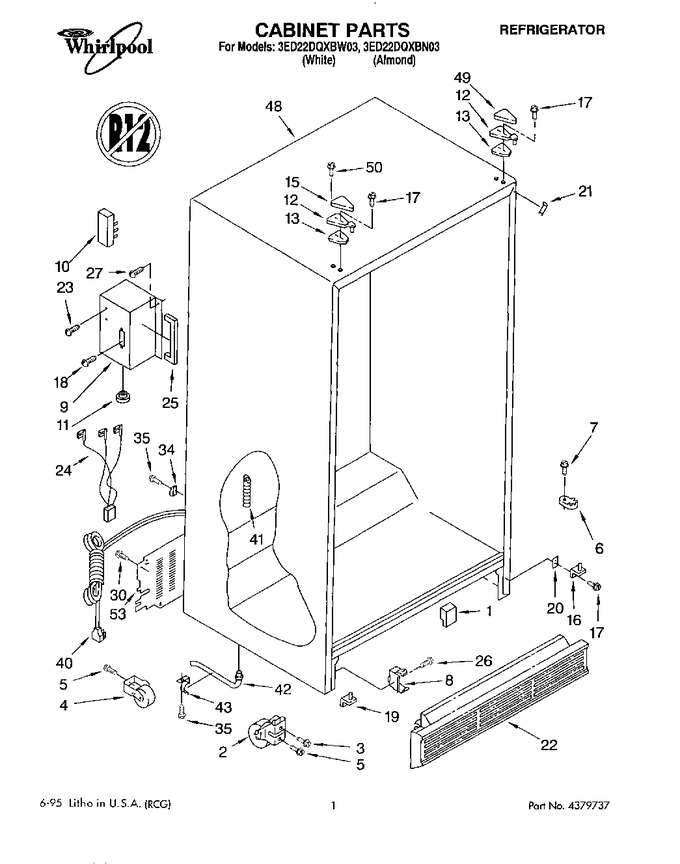

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2176796		Insert, Air Baffle		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	489432		Screw		Appelez-nous	-
4	WPW10250570		Roller, Rear (2)   (Replaces: 981122)				$ 40.17
5	WP489427		Screw   (Replaces: 489427)				$ 7.47
6	WPW10329686		Door Closer, Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 5.43
7	WP489483		Screw   (Replaces: 489420)				$ 10.87
8	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.72
9	2158579		Cover, Terminal Block		Appelez-nous	-
10	1129346		Terminal Block		Appelez-nous	-
11	1129449		Bushing		Appelez-nous	-
12	2155449		Hinge, Top (2)		Appelez-nous	-
13	1123515		Shim, Hinge (2)				$ 6.58
15	1129262		Hinge Cover (white)				$ 15.75
15	2150343		Hinge Cover (almond)		Appelez-nous	-
16	2155321		Hinge Bottom (r.h.)		Appelez-nous	-
17	WP999367		Screw   (Replaces: 489367)				$ 7.86
18	WPW10272364		Screw   (Replaces: 489211)			Immediately	$ 10.82
19	2155323		Hinge Bottom (l.h.)		Appelez-nous	-
20	836196		Spacer, Hinge		Appelez-nous	-
21	1110708		Filler, Wrapper		Appelez-nous	-
22	2155478		Grille (almond)		Appelez-nous	-
22	2155477		Grille (white)		Appelez-nous	-
23	00489346		Screw   (Replaces: 489346)				$ 380.15
24	2209657		Wiring Assembly   (Replaces: 2165297)		Appelez-nous	-
25	2167227		Gasket		Appelez-nous	-
26	WP489478		Screw   (Replaces: 489242)				$ 7.75
27	WP250830		Screw   (Replaces: 489048)				$ 7.95
30	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
34	489348		Clamp		Appelez-nous	-
35	WP489464		Screw   (Replaces: 489337)			Immediately	$ 7.83
40	1129332		Service Cord		Appelez-nous	-
41	W11566763		Fitting, Drain   (Replaces: 940139)			Immediately	$ 50.90
42	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 31.33
43	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 10.74
48	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
49	1119787		Hinge Cover (white)				$ 22.50
49	1119789		Hinge Cover (almond)		Appelez-nous	-
50	489284		Screw		Appelez-nous	-
53	2160521		Cover, Unit		Appelez-nous	-
